Overview

The Branch Events API is a robust tool for tracking events that take place in your app.

These events fall under 4 categories: Commerce, Content, Lifecycle, or Custom.

Benefits

With the Branch Events API, you can track conversion data and include detailed metadata to help you better understand user behavior as it relates to your campaigns.

Try it!

Try out the Events API in your browser, using your Branch data:

• Logging Standard Events
• Logging Custom Events

Getting started

Before you begin

To use the Events API, you first need to create a Branch account.

Authentication

For calls to the Events API, you need your Branch Key.

Legacy Branch

To retrieve your credentials in the legacy Branch experience:

1. Navigate to the Account → Settings → Profile tab.
2. Use the copy icon to copy your Branch Key.

New Branch

To retrieve your credentials in the new Branch experience:

1. Navigate to the Configuration → Security & Access → Credentials tab.
2. Use the copy icon to copy your Branch Key.

Visit our guide to learn more about managing your Branch credentials.

Important considerations

• Real-time only: You must send events in real time as they occur. Branch does not support backtracking or historical event ingestion. Events with timestamps in the past will not be backfilled into reports.
• SKAdNetwork (SKAN): Your app must handle SKAN natively, not through the Branch SDK. Branch returns SKAN-relevant fields (such as coarse_key and update_conversion_value) in the API response so your app can update its conversion value accordingly. See the SKAdNetwork guide for details.

Usage

Logging standard events

Use this endpoint to log standard Branch Events.

Standard Branch Events are limited to Commerce, Content, and Lifecycle events. See the "Request body parameters" table in this section to see which standard Branch Events you can log with this endpoint.

Request info

Export request

POST /v2/event/standard

Request headers

Parameter	Value	Required
content-type	application/json	Recommended
accept	application/json	Recommended
X-IP-Override	A public IPv4 address (for example, 198.51.100.42)	Optional. See callout below.

Caution

The X-IP-Override header lets you specify the IP address Branch uses for the event (for example, when forwarding events server-to-server from your own backend). You must meet two requirements for this header to function:

1. Your app ID must be allowlisted by Branch. The header is ignored until allowlisting is enabled. Open a support request to have your app ID allowlisted before you begin sending the header in production.
2. You must also include user_data.ip in the request body with the same IP value. Sending the header alone is not sufficient. The body field is what Branch persists for attribution.

Top-level request body parameters

Top-level parameter	Type	Description	Required
branch_key	String	The Branch Key for the relevant application.	Yes
name	String	The name of the event to log. Must be one of the standard Branch Event names included below. Commerce event names: ADD_TO_CART ADD_TO_WISHLIST CLICK_AD VIEW_CART INITIATE_PURCHASE ADD_PAYMENT_INFO PURCHASE SPEND_CREDITS Content event names: SEARCH VIEW_ITEM VIEW_ITEMS RATE SHARE Lifecycle event names: ADD_TO_CART ADD_TO_WISHLIST CLICK_AD VIEW_CART INITIATE_PURCHASE ADD_PAYMENT_INFO PURCHASE SPEND_CREDITS	Yes
customer_event_alias	String	The event alias, as defined by you. Used in addition to the Branch Event name in the name parameter.	No
user_data	Obj	An object related to user data, containing things like device information and advertising IDs. Also used to provide information regarding the user for Google DMA compliance. See user_data table for more.	Yes
custom_data	Obj	An object for additional custom key-value pairs that you want attached to the Branch Event. This is attached to Branch Events that are retrieved via exports and sent via webhooks.	No
event_data	Obj	An object containing additional data about the specific event, including information about things like currency and revenue. See event_data table for more.	No
content_items	Obj	An object only for Commerce and Content Branch Events. Contains additional information about specific content. See content_items table for more.	No

Parameters included in user_data object

Caution: Required identifiers

You must include at least one of the following in user_data:

1. user_data.developer_identity or
2. user_data.browser_fingerprint_id or
3. user_data.os=iOS AND user_data.idfa or
4. user_data.os=iOS AND user_data.idfv or
5. user_data.os=Android AND user_data.android_id or
6. user_data.os=Android AND user_data.aaid

Note

In addition to the standard identifiers above, include any third-party IDs that apply to your integration so you can join events with downstream tools.
Common examples:

• user_data.google_analytics_id: the Google Analytics client ID, for cross-platform stitching with GA.
• A Snowflake user identifier (or equivalent data-warehouse key) inside custom_data, so you can join events with your data warehouse.

Including these where applicable improves attribution coverage and downstream analytics.

Parameters for user_data	Type	Description	Required
user_data.os	String	Examples: Android iOS Mac_OS Linux Windows	See "Required identifiers" callout
user_data.os_version	String	The version of the operating system.	Strongly recommended for all paid traffic to ensure accurate attribution Required for Facebook campaigns on iOS
user_data.advertising_ids	Obj	A wrapper object for advertising identifiers. Use this in addition to the flat aaid, idfa, and idfv fields above to future-proof your integration for non-standard IDs (for example, OAID on Huawei devices). Example: "advertising_ids": {"oaid": "00aa00a0-0000-0a00-a000-aaa0000a0aaa"}	No (recommended for non-standard IDs like OAID)
user_data.environment	String	Usually FULL_APP.	No
user_data.aaid	String	The Android Advertising ID.	See "Required identifiers" callout
user_data.android_id	String	The Android hardware ID.	See "Required identifiers" callout
user_data.idfa	String	The iOS advertising ID.	See "Required identifiers" callout
user_data.idfv	String	The iOS vendor ID.	See "Required identifiers" callout
user_data.anon_id	String	The Facebook anonymous user ID. Used for measurement and attribution when running Facebook campaigns that rely on Aggregated Event Measurement (AEM).	Required when running Facebook campaigns using Aggregated Event Measurement (AEM) on iOS
user_data.limit_ad_tracking	Bool	Set to true if the partner has opted to not be tracked by advertisers.	No
user_data.user_agent	String	The user agent of the browser or app where the event occurred. Usually associated with a webview.	No
user_data.browser_fingerprint_id	String	An internal-only field for Branch to track browsers.	See "Required identifiers" callout
user_data.http_origin	String	The current page URL where the Branch Web SDK logged a web session start.	No
user_data.http_referrer	String	The referral URL that led to the current page where the Branch Web SDK logged a web session start.	No
user_data.developer_identity	String	The developer-specified identity for a user.	See "Required identifiers" callout
user_data.country	String	The country code of the user, usually based on device settings or the user agent string.	No
user_data.language	String	The language code of the user, usually based on device settings or the user agent string.	No
user_data.ip	String	The IP address for the device where the event occurred.	No
user_data.local_ip	String	Android only: the local IP of the device. Example: "168.1.1.1"	No
user_data.brand	String	The brand of the device.	No
user_data.randomized_device_token	String	An internal-only Branch field for tracking devices.	No
user_data.app_version	String	The version of the app downloaded by the user.	No
user_data.model	String	The model of the device.	No
user_data.screen_dpi	Int	The screen's DPI.	No
user_data.screen_height	Int	The screen's height.	No
user_data.screen_width	Int	The screen's width.	No
user_data.dma_eea	Bool	Whether European regulations, including the DMA, apply to this user and conversion. Set to true if the user is included in European Union regulations. For example, if the user is located within the EEA, they are within the scope of the DMA. Set to false if the user is considered excluded from European Union regulations.	Required if EU regulations apply to this user Warning: Failure to include user consent signals may result in attribution or campaign performance degradation
user_data.dma_ad_personalization	Bool	Whether the end user has granted or denied ads personalization consent. Set to true if the user has granted consent for ads personalization. Set to false if the user has denied consent for ads personalization.	Required if dma_eea is set to true (that is, EU regulations apply to this user) Warning: Failure to include user consent signals may result in attribution or campaign performance degradation
user_data.dma_ad_user_data	Bool	Whether the end user has granted or denied consent for 3P transmission of user-level data for ads. Set to true if the user has granted consent for 3P transmission of user-level data for ads. Set to false if the user has denied consent for 3P transmission of user-level data for ads.	Required if dma_eea is set to true (that is, EU regulations apply to this user) Warning: Failure to include user consent signals may result in attribution or campaign performance degradation

Parameters included in event_data object

Parameters for event_data	Type	Description	Required
event_data.transaction_id	String	The partner-specified transaction ID for their internal use.	No
event_data.revenue	Num	The partner-specified reported revenue for the event.	No
event_data.currency	String	The currency that the revenue, price, shipping, and tax were originally reported in by the partner.	No
event_data.shipping	Num	The shipping cost associated with the transaction.	No
event_data.tax	Num	The total tax associated with the transaction.	No
event_data.coupon	String	The transaction coupon redeemed with the transaction (for example, "SPRING2017").	No
event_data.affiliation	String	The store or affiliation associated with this transaction (for example, "Google Store").	No
event_data.description	String	The description associated with the event, not necessarily specific to any individual content items (see the content_items parameter).	No
event_data.search_query	String	Additional search queries.	No

Parameters included in content_items object

Parameters for content_items	Type	Description	Required
content_items[i].$content_schema	String	The category or schema for a piece of content. May be used in the future for analytics. Must be one of the following: COMMERCE_AUCTION COMMERCE_BUSINESS COMMERCE_OTHER COMMERCE_PRODUCT COMMERCE_RESTAURANT COMMERCE_SERVICE COMMERCE_TRAVEL_FLIGHT COMMERCE_TRAVEL_HOTEL COMMERCE_TRAVEL_OTHER GAME_STATE MEDIA_IMAGE MEDIA_MIXED MEDIA_MUSIC MEDIA_OTHER MEDIA_VIDEO OTHER TEXT_ARTICLE TEXT_BLOG TEXT_OTHER TEXT_RECIPE TEXT_REVIEW TEXT_SEARCH_RESULTS TEXT_STORY TEXT_TECHNICAL_DOC	No
content_items[i].$og_title	String	The title for the content item.	No
content_items[i].$og_image_url	String	The image URL for the content item.	No
content_items[i].$canonical_identifier	String	Allows Branch to unify content/messages for content analytics.	No
content_items[i].$publicly_indexable	Bool	Whether content can be indexed for public use. Use true for content that can be seen by anyone, and false for content that cannot be indexed for public use.	No
content_items[i].$locally_indexable	Bool	Use true for content that can be indexed for local (device) use, and false for content that cannot be indexed for local use.	No
content_items[i].$price	String	The price for the product or content.	No
content_items[i].$quantity	String	The quantity of the item to be ordered.	No
content_items[i].$sku	String	The product SKU or product ID.	No
content_items[i].$product_name	String	The product's name.	No
content_items[i].$product_brand	String	The product's brand.	No
content_items[i].$product_category	String	The product's category. Must be one of the following: ANIMALS_AND_PET_SUPPLIES APPAREL_AND_ACCESSORIES ARTS_AND_ENTERTAINMENT BABY_AND_TODDLER BUSINESS_AND_INDUSTRIAL CAMERAS_AND_OPTICS ELECTRONICS FOOD_BEVERAGES_AND_TOBACCO FURNITURE HARDWARE HEALTH_AND_BEAUTY HOME_AND_GARDEN LUGGAGE_AND_BAGS MATURE MEDIA OFFICE_SUPPLIES RELIGIOUS_AND_CEREMONIAL SOFTWARE SPORTING_GOODS TOYS_AND_GAMES VEHICLES_AND_PARTS	No
content_items[i].$product_variant	String	The product's variant. Examples include red and XL.	No
content_items[i].$rating_average	Num	The average rating of the item.	No
content_items[i].$rating_count	Num	The number of ratings for the item.	No
content_items[i].$rating_max	Num	The maximum possible rating for the item (for example, 5.0 if 5 stars is the highest possible rating).	No
content_items[i].$creation_timestamp	Int	The time the content was created.	No
content_items[i].$exp_date	Int	The time after which this content is no longer valid. The values null and 0 mean no limit. Should rarely be set.	No
content_items[i].$keywords	Array	An array of keywords (strings) related to the product.	No
content_items[i].$address_street	String	The street address for a restaurant, business, room (hotel), etc.	No
content_items[i].$address_city	String	The city for a restaurant, business, room (hotel), etc.	No
content_items[i].$address_region	String	The state or region for a restaurant, business, room (hotel), etc.	No
content_items[i].$address_country	String	The country code for a restaurant, business, room (hotel), etc.	No
content_items[i].$address_postal_code	String	The postal/zip code for a restaurant, business, room (hotel), etc.	No
content_items[i].$latitude	Num	The latitude for a restaurant, business, room (hotel), etc.	No
content_items[i].$longitude	Num	The longitude for a restaurant, business, room (hotel), etc.	No
content_items[i].$image_captions	Array	An array of captions (strings) associated with the image.	No
content_items[i].$condition	String	Relates to product condition and is generally used for auctions. Must be one of the following: OTHER NEW EXCELLENT GOOD FAIR POOR USED REFURBISHED	No
content_items[i].$custom_fields	Obj	An object containing key-value pairs that you want attached to the content item. Attached to events that are retrieved via exports and sent via webhooks.	No

Response info

Response codes

Response code	Definition
200	Success
400	Authentication failed
429	Rate limit reached

Examples

Example requests

Example Commerce Request (cURL)

curl -vvv -d '{
    "name": "PURCHASE",
    "customer_event_alias": "my custom alias",
    "user_data": {
        "advertising_ids": {
            "oaid": "00aa00a0-0000-0a00-a000-aaa0000a0aaa"
        },
        "os": "Android",
        "os_version": 25,
        "anon_id": "fbanon_abc123def456",
        "environment": "FULL_APP",
        "aaid": "abcdabcd-0123-0123-00f0-000000000000",
        "android_id": "a12300000000",
        "limit_ad_tracking": false,
        "developer_identity": "user123",
        "country": "US",
        "language": "en",
        "ip":"000.000.0.0",
        "local_ip": "000.000.0.0",
        "brand": "LGE",
        "app_version": "1.0.0",
        "model": "Nexus 5X",
        "screen_dpi": 420,
        "screen_height": 1794,
        "screen_width": 1080,
        "dma_eea": true,
        "dma_ad_personalization": true,
        "dma_ad_user_data": true
    },
    "custom_data": {
        "purchase_loc": "Palo Alto",
        "store_pickup": "unavailable"
    },
    "event_data": {
        "transaction_id": "tras_Id_1232343434",
        "currency": "USD",
        "revenue": 180.2,
        "shipping": 10.5,
        "tax": 13.5,
        "coupon": "promo-1234",
        "affiliation": "high_fi",
        "description": "Preferred purchase"
    },
    "content_items": [
        {
            "$content_schema": "COMMERCE_PRODUCT",
            "$og_title": "Nike Shoe",
            "$og_description": "Start loving your steps",
            "$og_image_url": "http://example.com/img1.jpg",
            "$canonical_identifier": "nike/1234",
            "$publicly_indexable": false,
            "$price": 101.2,
            "$locally_indexable": true,
            "$quantity": 1,
            "$sku": "1101123445",
            "$product_name": "Runner",
            "$product_brand": "Nike",
            "$product_category": "Sporting Goods",
            "$product_variant": "XL",
            "$rating_average": 4.2,
            "$rating_count": 5,
            "$rating_max": 2.2,
            "$creation_timestamp": 1499892854966,
            "$exp_date": 1499892854966,
            "$keywords": [
                "sneakers",
                "shoes"
            ],
            "$address_street": "230 South LaSalle Street",
            "$address_city": "Chicago",
            "$address_region": "IL",
            "$address_country": "US",
            "$address_postal_code": "60604",
            "$latitude": 12.07,
            "$longitude": -97.5,
            "$image_captions": [
                "my_img_caption1",
                "my_img_caption_2"
            ],
            "$condition": "NEW",
            "$custom_fields": "{\"foo1\":\"bar1\",\"foo2\":\"bar2\"}"
        },
        {
            "$og_title": "Nike Woolen Sox",
            "$canonical_identifier": "nike/5324",
            "$og_description": "Fine combed woolen sox",
            "$publicly_indexable": false,
            "$price": 80.2,
            "$locally_indexable": true,
            "$quantity": 5,
            "$sku": "110112467",
            "$product_name": "Woolen Sox",
            "$product_brand": "Nike",
            "$product_category": "Apparel & Accessories",
            "$product_variant": "Xl",
            "$rating_average": 3.3,
            "$rating_count": 5,
            "$rating_max": 2.8,
            "$creation_timestamp": 1499892854966
        }
    ],
    "metadata": {},
    "branch_key": "key_test_XXX"
}' https://api2.branch.io/v2/event/standard

Example Content Request (cURL)

curl -vvv -d '{
    "name": "VIEW_ITEMS",
    "customer_event_alias": "my custom alias",
    "user_data": {
        "advertising_ids": {
            "oaid": "00aa00a0-0000-0a00-a000-aaa0000a0aaa"
        },
        "os": "Android",
        "os_version": 25,
        "anon_id": "fbanon_abc123def456",
        "environment": "FULL_APP",
        "aaid": "abcdabcd-0123-0123-00f0-000000000000",
        "android_id": "a12300000000",
        "limit_ad_tracking": false,
        "developer_identity": "user123",
        "country": "US",
        "language": "en",
        "ip": "000.000.0.0",
        "local_ip": "000.000.0.0",
        "brand": "LGE",
        "app_version": "1.0.0",
        "model": "Nexus 5X",
        "screen_dpi": 420,
        "screen_height": 1794,
        "screen_width": 1080,
        "dma_eea": true,
        "dma_ad_personalization": true,
        "dma_ad_user_data": true
    },
    "custom_data": {
        "purchase_loc": "Palo Alto",
        "store_pickup": "unavailable"
    },
    "event_data": {
        "search_query": "red sneakers",
        "description": "Preferred purchase"
    },
    "content_items": [
        {
            "$content_schema": "COMMERCE_PRODUCT",
            "$og_title": "Nike Shoe",
            "$og_description": "Start loving your steps",
            "$og_image_url": "http://example.com/img1.jpg",
            "$canonical_identifier": "nike/1234",
            "$publicly_indexable": false,
            "$price": 101.2,
            "$locally_indexable": true,
            "$sku": "1101123445",
            "$product_name": "Runner",
            "$product_brand": "Nike",
            "$product_category": "Sporting Goods",
            "$product_variant": "XL",
            "$rating_average": 4.2,
            "$rating_count": 5,
            "$rating_max": 2.2,
            "$creation_timestamp": 1499892854966,
            "$exp_date": 1499892854966,
            "$keywords": [
                "sneakers",
                "shoes"
            ],
            "$address_street": "230 South LaSalle Street",
            "$address_city": "Chicago",
            "$address_region": "IL",
            "$address_country": "US",
            "$address_postal_code": "60604",
            "$latitude": 12.07,
            "$longitude": -97.5,
            "$image_captions": [
                "my_img_caption1",
                "my_img_caption_2"
            ],
            "$condition": "NEW",
            "$custom_fields": "{\"foo1\":\"bar1\",\"foo2\":\"bar2\"}"
        },
        {
            "$og_title": "Nike Woolen Sox",
            "$canonical_identifier": "nike/5324",
            "$og_description": "Fine combed woolen sox",
            "$publicly_indexable": false,
            "$price": 80.2,
            "$locally_indexable": true,
            "$sku": "110112467",
            "$product_name": "Woolen Sox",
            "$product_brand": "Nike",
            "$product_category": "Apparel & Accessories",
            "$product_variant": "Xl",
            "$rating_average": 3.3,
            "$rating_count": 5,
            "$rating_max": 2.8,
            "$creation_timestamp": 1499892854966
        }
    ],
    "metadata": {},
    "branch_key": "key_test_XXX"
}' https://api.branch.io/v2/event/standard

Example Lifecycle Request (cURL)

curl -vvv -d '{
    "name": "COMPLETE_REGISTRATION",
    "user_data": {
        "advertising_ids": {
            "oaid": "00aa00a0-0000-0a00-a000-aaa0000a0aaa"
        },
        "os": "Android",
        "os_version": 25,
        "anon_id": "fbanon_abc123def456",
        "environment": "FULL_APP",
        "aaid": "abcdabcd-0123-0123-00f0-000000000000",
        "android_id": "a12300000000",
        "limit_ad_tracking": false,
        "developer_identity": "user123",
        "country": "US",
        "language": "en",
        "ip": "000.000.0.0",
        "local_ip": "000.000.0.0",
        "brand": "LGE",
        "app_version": "1.0.0",
        "model": "Nexus 5X",
        "screen_dpi": 420,
        "screen_height": 1794,
        "screen_width": 1080,
        "dma_eea": true,
        "dma_ad_personalization": true,
        "dma_ad_user_data": true
    },
    "custom_data": {
        "foo": "bar"
    },
    "event_data": {
        "description": "Preferred purchase"
    },
    "metadata": {},
    "branch_key": "key_test_XXX"
}' https://api.branch.io/v2/event/standard

Example response

{
  "ascending_only": false,
  "locked": false
}

Logging custom events

Request info

Export request

POST /v2/event/custom

Request header parameters

Parameter	Value	Required
content-type	application/json	Recommended
accept	application/json	Recommended
X-IP-Override	A public IPv4 address (for example, 198.51.100.42)	Optional. See callout below.

Caution

The X-IP-Override header lets you specify the IP address Branch uses for the event (for example, when forwarding events server-to-server from your own backend). You must meet two requirements for this header to function:

1. Your app ID must be allowlisted by Branch. The header is ignored until allowlisting is enabled. Open a support request to have your app ID allowlisted before you begin sending the header in production.
2. You must also include user_data.ip in the request body with the same IP value. Sending the header alone is not sufficient. The body field is what Branch persists for attribution.

Top-level request body parameters

Top-level parameter	Type	Description	Required
branch_key	String	The Branch Key for the relevant application.	Yes
name	String	The name of the event to log. Can be a custom event name and include spaces, for example, "picture swapped".	Yes
user_data	Obj	An object related to user data, containing things like device information and advertising IDs. Also used to provide information regarding the user for Google DMA compliance. See user_data table for more.	Yes
custom_data	Obj	An object for additional custom key-value pairs that you want attached to the Branch Event. This is attached to Branch Events that are retrieved via exports and sent via webhooks.	No
meta_data	Obj	An object to store further information about the Branch Event.	No
event_data	Obj	An object containing additional data about the specific event, including information about things like currency and revenue. See event_data table for more.	No

Parameters included in user_data object

Caution: Required identifiers

You must include at least one of the following in user_data:

1. user_data.developer_identity or
2. user_data.browser_fingerprint_id or
3. user_data.os=iOS AND user_data.idfa or
4. user_data.os=iOS AND user_data.idfv or
5. user_data.os=Android AND user_data.android_id or
6. user_data.os=Android AND user_data.aaid

Note

In addition to the standard identifiers above, include any third-party IDs that apply to your integration so you can join events with downstream tools.
Common examples:

• user_data.google_analytics_id: the Google Analytics client ID, for cross-platform stitching with GA.
• A Snowflake user identifier (or equivalent data-warehouse key) inside custom_data, so you can join events with your data warehouse.

Including these where applicable improves attribution coverage and downstream analytics.

Parameters for user_data	Type	Description	Required
user_data.os	String	Examples: Android iOS Mac_OS Linux Windows	See "Required identifiers" callout
user_data.os_version	String	The version of the operating system.	Strongly recommended for all paid traffic to ensure accurate attribution Required for Facebook campaigns on iOS
user_data.advertising_ids	Obj	A wrapper object for advertising identifiers. Use this in addition to the flat aaid, idfa, and idfv fields above to future-proof your integration for non-standard IDs (for example, OAID on Huawei devices). Example: "advertising_ids": {"oaid": "00aa00a0-0000-0a00-a000-aaa0000a0aaa"}	No (recommended for non-standard IDs like OAID)
user_data.environment	String	Usually FULL_APP.	No
user_data.aaid	String	The Android Advertising ID.	See "Required identifiers" callout
user_data.android_id	String	The Android hardware ID.	See "Required identifiers" callout
user_data.idfa	String	The iOS advertising ID.	See "Required identifiers" callout
user_data.idfv	String	The iOS vendor ID.	See "Required identifiers" callout
user_data.anon_id	String	The Facebook anonymous user ID. Used for measurement and attribution when running Facebook campaigns that rely on Aggregated Event Measurement (AEM).	Required when running Facebook campaigns using Aggregated Event Measurement (AEM) on iOS
user_data.limit_ad_tracking	Bool	Set to true if the partner has opted to not be tracked by advertisers.	No
user_data.user_agent	String	The user agent of the browser or app where the event occurred. Usually associated with a webview.	No
user_data.browser_fingerprint_id	String	An internal-only field for Branch to track browsers.	See "Required identifiers" callout
user_data.http_origin	String	The current page URL where the Branch Web SDK logged a web session start.	No
user_data.http_referrer	String	The referral URL that led to the current page where the Branch Web SDK logged a web session start.	No
user_data.developer_identity	String	The developer-specified identity for a user.	See "Required identifiers" callout
user_data.country	String	The country code of the user, usually based on device settings or the user agent string.	No
user_data.language	String	The language code of the user, usually based on device settings or the user agent string.	No
user_data.ip	String	The IP address for the device where the event occurred.	No
user_data.local_ip	String	Android only: the local IP of the device. Example: "168.1.1.1"	No
user_data.brand	String	The brand of the device.	No
user_data.randomized_device_token	String	An internal-only Branch field for tracking devices.	No
user_data.app_version	String	The version of the app downloaded by the user.	No
user_data.model	String	The model of the device.	No
user_data.screen_dpi	Int	The screen's DPI.	No
user_data.screen_height	Int	The screen's height.	No
user_data.screen_width	Int	The screen's width.	No
user_data.dma_eea	Bool	Whether European regulations, including the DMA, apply to this user and conversion. Set to true if the user is included in European Union regulations. For example, if the user is located within the EEA, they are within the scope of the DMA. Set to false if the user is considered excluded from European Union regulations.	Required if EU regulations apply to this user Warning: Failure to include user consent signals may result in attribution or campaign performance degradation
user_data.dma_ad_personalization	Bool	Whether the end user has granted or denied ads personalization consent. Set to true if the user has granted consent for ads personalization. Set to false if the user has denied consent for ads personalization.	Required if dma_eea is set to true (that is, EU regulations apply to this user) Warning: Failure to include user consent signals may result in attribution or campaign performance degradation
user_data.dma_ad_user_data	Bool	Whether the end user has granted or denied consent for 3P transmission of user-level data for ads. Set to true if the user has granted consent for 3P transmission of user-level data for ads. Set to false if the user has denied consent for 3P transmission of user-level data for ads.	Required if dma_eea is set to true (that is, EU regulations apply to this user) Warning: Failure to include user consent signals may result in attribution or campaign performance degradation

Parameters included in event_data object

Parameters for event_data	Type	Description	Required
event_data.transaction_id	String	The partner-specified transaction ID for their internal use.	No
event_data.revenue	Num	The partner-specified reported revenue for the event.	No
event_data.currency	String	The currency that the revenue, price, shipping, and tax were originally reported in by the partner.	No
event_data.shipping	Num	The shipping cost associated with the transaction.	No
event_data.tax	Num	The total tax associated with the transaction.	No
event_data.coupon	String	The transaction coupon redeemed with the transaction (for example, "SPRING2017").	No
event_data.affiliation	String	The store or affiliation associated with this transaction (for example, "Google Store").	No
event_data.description	String	The description associated with the event, not necessarily specific to any individual content items (see the content_items parameter).	No
event_data.search_query	String	Additional search queries.	No

Response info

Response codes

Response code	Definition
200	Success
400	Authentication failed
429	Rate limit reached

Example request & response

Request (cURL)

curl -vvv -d '{
    "name": "picture swiped",
    "user_data": {
        "advertising_ids": {
            "oaid": "02ab41d3-7886-4f29-a606-fba4372e9fdc"
        },
        "os": "Android",
        "os_version": 25,
        "anon_id": "fbanon_abc123def456",
        "environment": "FULL_APP",
        "aaid": "abcdabcd-0123-0123-00f0-000000000000",
        "android_id": "a12300000000",
        "limit_ad_tracking": false,
        "developer_identity": "user123",
        "country": "US",
        "language": "en",
        "ip": "000.000.0.0",
        "local_ip": "000.000.0.0",
        "brand": "LGE",
        "app_version": "1.0.0",
        "model": "Nexus 5X",
        "screen_dpi": 420,
        "screen_height": 1794,
        "screen_width": 1080,
        "dma_eea": true,
        "dma_ad_personalization": true,
        "dma_ad_user_data": true
    },
    "custom_data": {
        "foo": "bar"
    },
    "meta_data": {
        "foo": "bar"
    },
    "branch_key": "key_test_XXX"
}' https://api.branch.io/v2/event/custom

Response (JSON)

{
  "ascending_only": false,
  "locked": false
}

Verify events sent

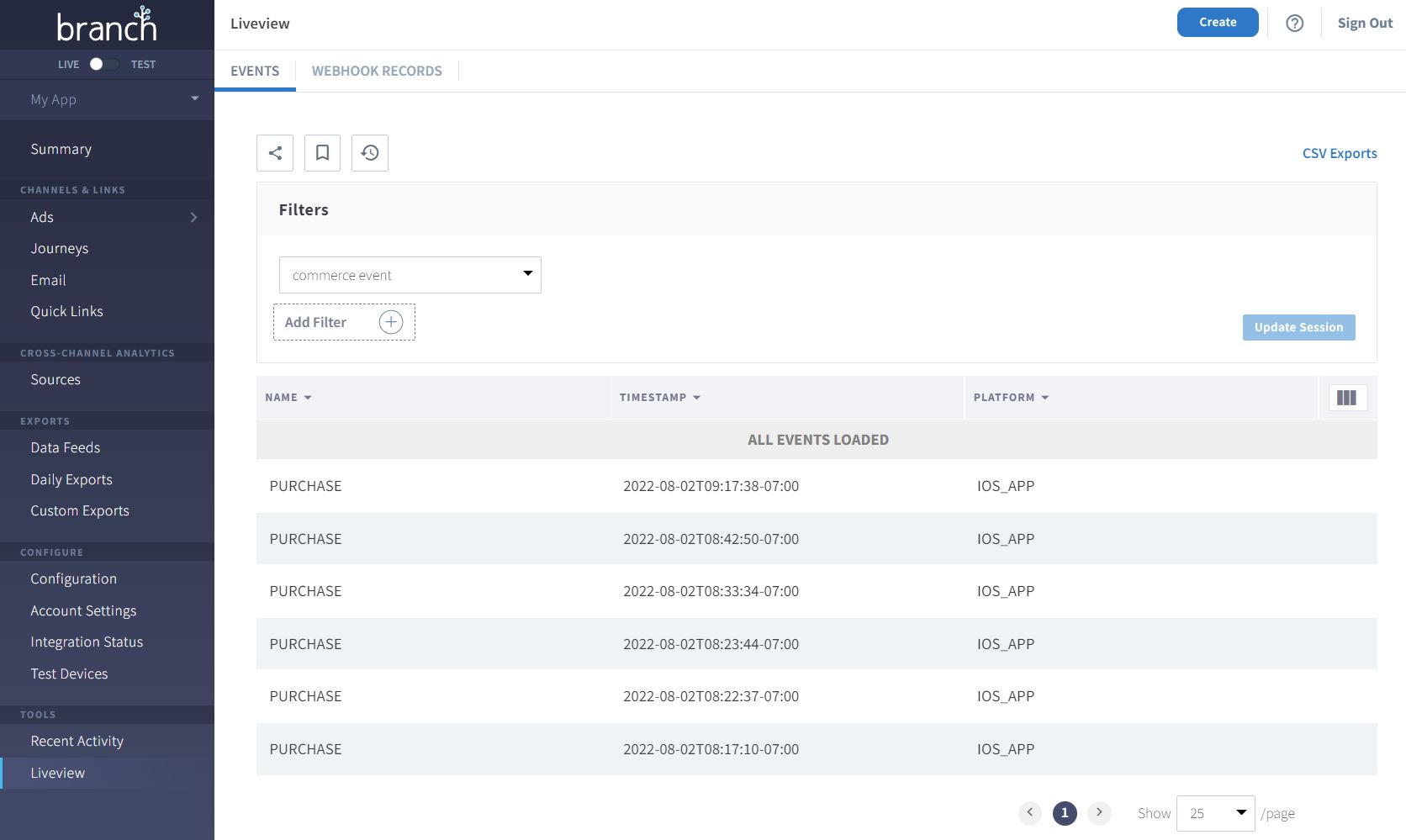

Once you've used the Branch Events API to track a Branch Event, you can verify that it was successfully sent for attribution by using the Liveview screen in Branch.

Note: Be patient when using the Liveview screen, as it may take some time for data to flow from our attribution systems to Branch. If the data has not appeared in Liveview after 30 minutes, review your API request to see if you may have missed something.
