Cohort API Overview

Overview

Cohort Analytics is a powerful tool that helps you not only understand the full ROI of your campaigns but also guide future investment decisions and consumer targeting.

With the Branch Cohort API, you can access Cohort Analytics data programmatically.

Benefits of Cohort API

Cohort Analytics data lets you analyze your cross-channel, cross-platform performance by either acquisition date (app install only) or re-engagement date (web and app sessions), to see how those users performed over time.

Limitations

Limitation	Details
Max number of records returned	50,000 We may define dynamic record limits based on `app_id` or `organization_id`.
Export window	Rolling 2-year window.
Max number of dimensions	11 dimensions.
Max number of measures	5 measures.
Max number of days queried	90 days.
Rate limits	2 requests per second. 5 requests per minute. 150 requests per hour.

Getting started

Before you begin

To use the Cohort API, you first need to:

Create a Branch account.
Implement the appropriate Branch SDK into your mobile app (iOS | Android).
Make sure you have the appropriate permissions set on your user account. See the "Access" section for more.

Access

General access

To access the Async Aggregate API, a user must have both Aggregate Data and Export access enabled on their account.

Agency access

If you work with an agency that runs your advertising campaigns and want to give them access to export the subsequent data, you can provide them with access to the Cohort API.

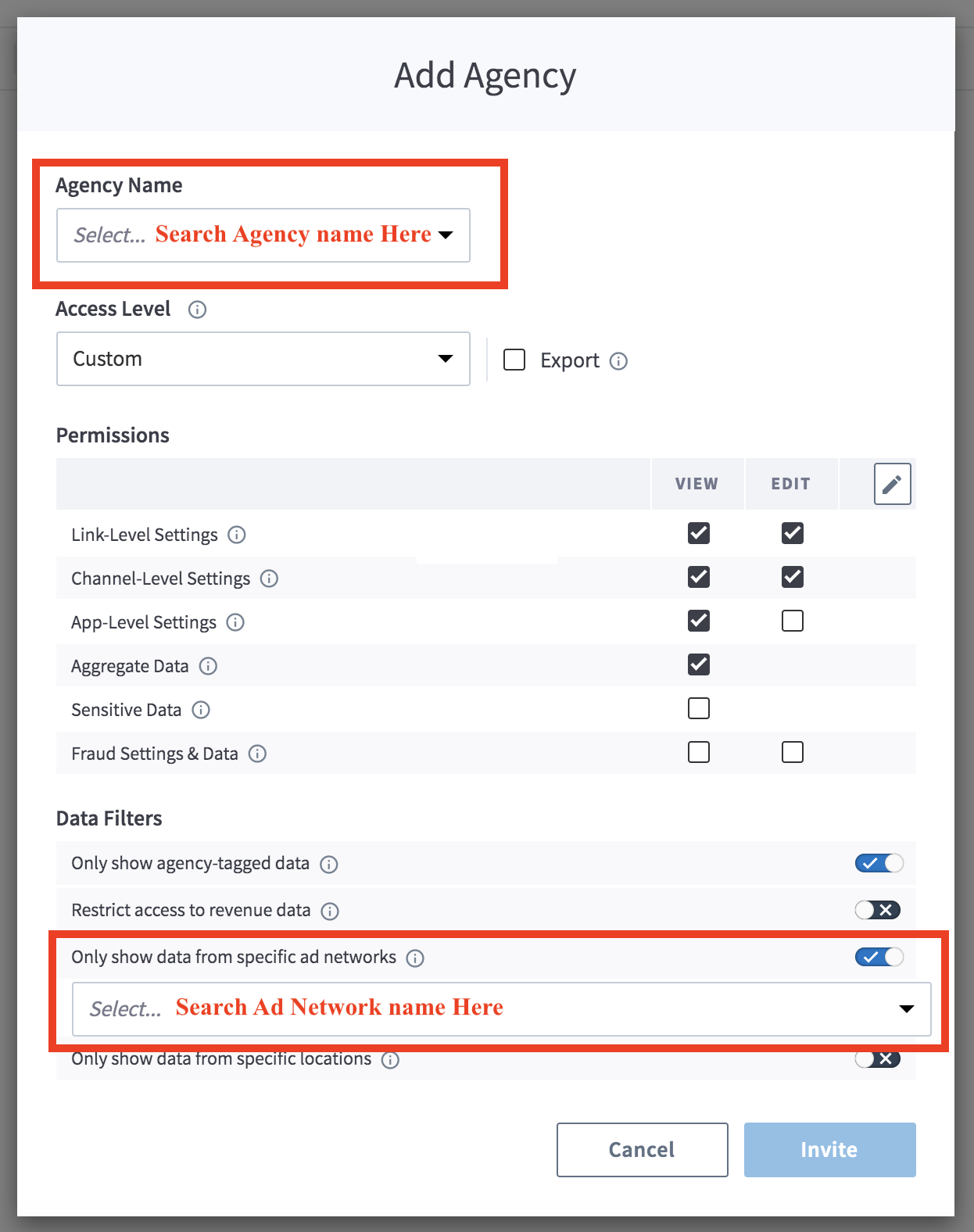

To provide an agency team member with access to the Cohort API:

In the left-hand navigation, under Setup & Testing, select Account Settings.
On the Account Settings page, select the Agencies tab.
Expand the agency in question, find the agency team member you want to give access to, hover over the button in the Actions column, and select Edit.
In the Edit Agency Team Member modal:
1. Under Access Level, check the Export box.
2. Under Permissions, check the Aggregate Data box.
Optional: Add data filters.
1. Under Data Filters, toggle any necessary data filters on. Exported data will be filtered accordingly.
Select Save.

Agency-tagged data

If you do not enable the "Only Show Agency-Tagged Data" filter, the agency team member can export aggregate data associated with all of your campaigns, regardless of whether they are associated with them or not.

Authentication

For calls to the Cohort API, you need your Access Token.

Legacy Branch

To retrieve your credentials in the legacy Branch experience:

Navigate to the Account → Settings → User tab.
If you have not yet generated an Access Token, select the Generate token button.
Use the copy icon to copy your Access Token.

New Branch

To retrieve your credentials in the new Branch experience:

Navigate to the Configuration → Security & Access → Credentials tab.
If you have not yet generated an Access Token, select the Generate token button.
Use the copy icon to copy your Access Token.

Visit our guide to learn more about managing your Branch credentials.

Usage

Export Cohort Analytics

Request info

Export request

http

POST https://api2.branch.io/v2/analytics
Content-Type: application/json
Host: api2.branch.io

Request headers

Header	Description	Required
`Access-Token`	Key that encapsulates the user's permission with regard to an organization. Obtained from Branch. Needed for authentication.	Yes
`accept`	application/json	Recommended
`content-type`	application/json	Recommended

Request query parameters

Parameter	Description	Required
`organization_id` or `app_id`	Unique identifier for the organization of the requested data.	Yes
`limit`	The maximum number of results to return. Default: 100 Min: 1 Max: 50000 (unless a higher limit is provisioned)	No
`format`	Format of the returned data. Defaults to CSV.	No

Request body parameters

Parameter	Type	Description	Required
`start_date`	Date	The start of the interval time range represented as an ISO-8601 complete date.	Yes
`end_date`	Date	The end of the interval time range represented as an ISO-8601 complete date.	Yes
`dimensions`	Array of Strings	An array representing dimension(s) to group by. See the "Dimensions" section for a complete list. The limit is 11.	No
`data_source`	String	A string value representing the cohort type. Can be either: - `"install_cohort"` - `"reengagement_cohort"`	Yes
`filters`	Array of Strings	Keys are the same as dimensions. Values are an array of values to match for the dimension. An object defining filters to match or disallow certain values.	No
`ordered`	String	Order of the response, based on the `ordered_by` value. - `"ascending"` - `"descending"` Default: `"descending"`	No
`ordered_by`	String	The dimension name used for sorting. See the "Dimensions" section for a complete list.	No
`measures`	String	The cohort measure names to return. The limit is 3. See the "Measures" section for a complete list.	Yes
`granularity_band_count`	Integer	Number of time units since the cohort event to return to the user.	Yes
`cumalative`	Boolean	If `true`, sum across bands so that a given band value is the sum of all preceding values, plus the band value. Default: `false`	No
`per_user`	Boolean	If `true`, divide each band value by the user count. Default: `false`	No
`granularity`	String	The time granularity that each band value represents. Default: `"day"`	No
`enable_install_recalculation`	Boolean	If `true`, Branch will dedupe unattributed installs caused by duplicate events from non-opt-in users coming from paid ads. This is related to iOS 14.5 privacy changes.	No

Response info

Response body parameters

Parameter	Description
`job_id`	Unique identifier used to retrieve job status and data. This is used in the "Get Export Download Status" request.
`code`	The HTTP response code.
`status_url`	The URL of the export request.
`error_message`	Error message. Only present if the query failed.

Example request & response

Request (cURL)Response (JSON)

curl

curl -X POST 'https://api2.branch.io/v2/analytics?app_id=xxxxxxxxxxx&limit=50000&format=json' -H 'Access-Token:api_app_xxxxxxxxxxxxxxxxxxxxxxxxx' -H 'content-type:application/json' -d '{
    "start_date": "2024-05-30",
    "end_date": "2024-05-31",
    "dimensions": ["install_activity_touch_data_tilde_campaign"],
    "data_source": "install_cohort",
    "filters": {
        "install_activity_touch_data_tilde_campaign": ["A4G"]
    },
    "ordered": "descending",
    "ordered_by": "install_activity_touch_data_tilde_campaign",
    "measures": ["OPEN"],
    "granularity_band_count": 7,
    "cumulative": false,
    "per_user": false,
    "granularity": "day",
    "enable_intall_recalculation": true
}'

json

{
  "code" : 200,
  "job_id" : "7636f4ab-34d1-47d1-a9c9-xxxxxxxx",
  "status_url" : "https://api2.branch.io/v2/analytics/xxxxxxxxx"
}

Get export download status

http

GET /v2/analytics/<job_id>
Host: api2.branch.io

Request info

Request headers

Header	Description	Required
`Access-Token`	Key that encapsulates the user's permission with regard to an organization. Obtained from Branch. Needed for authentication.	Yes
`accept`	application/json	Recommended
`content-type`	application/json	Recommended

Request path parameters

Parameter	Description	Required
`job_id`	The unique identifier for a job.	Yes

Request query parameters

Parameter	Description	Required
`organization_id` or `app_id`	Unique identifier for the organization of the requested data.	Yes

Response info

Response body parameters

Parameter	Description
`code`	HTTP response code representing the outcome of the status request. Note: A `1xx` code denotes a `QUEUED` or `RUNNING` status.
`status`	Status of the query. Possible status values: `QUEUED` `RUNNING` `FINISHED` `ERROR`
`response_url`	The AWS S3 URL for downloading the response data.
`error_message`	Error message. Only present if the query failed.

Example request & response

Request (cURL)Response (JSON)

curl

curl 'https://api2.branch.io/v2/analytics/<job_id>?organization_id=<organization_id>' -H 'Access-Token:<branch_access_token>'

json

{
  "code" : 200,
  "status" : "FINISHED",
  "response_url" : "https://branch-exports.s3.amazonaws.com/partner-query/2024-05-30-2024-05-31-install_cohort-day-7636f4ab-34d1-47d1-a9c9-7cbe364953ec-xxxxxxxxxxx.json?Signature=D0zi5Jkhl073ixxxxxxxxxxxxAccessKeyId=xxxxxxxxxxxxx&Expires=1655145468"
}

Appendix

Filters

Filters can be combined using the AND keyword at the top level.

Each dimension can have multiple or filters, for example, { user_data_os": ["IOS", "ANDROID"] }.

Dimensions

Install cohort

json

{
  "install_activity_attributed": "attributed",
  "install_activity_event_name": "event name",
  "install_activity_touch_type": "type",
  "install_activity_touch_data_tilde_campaign_id": "campaign id",
  "install_activity_touch_data_tilde_campaign": "campaign",
  "install_activity_touch_data_tilde_channel": "channel",
  "install_activity_touch_data_tilde_feature": "feature",
  "install_activity_touch_data_tilde_stage": "stage",
  "install_activity_touch_data_tilde_tags": "tags",
  "install_activity_touch_data_tilde_advertising_partner_name": "ad partner",
  "install_activity_touch_data_dollar_3p": "ad partner (3p)",
  "install_activity_touch_data_tilde_secondary_publisher": "secondary publisher",
  "install_activity_touch_data_tilde_creative_name": "creative name",
  "install_activity_touch_data_tilde_ad_id": "ad id",
  "install_activity_touch_data_tilde_ad_set_id": "ad set id",
  "install_activity_touch_data_tilde_ad_set_name": "ad set name",
  "install_activity_touch_data_tilde_ad_name": "ad name",
  "install_activity_touch_data_tilde_keyword": "keyword",
  "install_activity_touch_data_tilde_journey_name": "journey name",
  "install_activity_touch_data_tilde_view_name": "view name",
  "install_activity_touch_data_plus_referring_domain": "referring domain",
  "install_activity_touch_data_plus_via_features": "Branch feature",
  "install_activity_touch_data_plus_web_format": "web format",
  "install_activity_data_os": "os",
  "install_activity_data_environment": "environment",
  "install_activity_data_platform": "platform",
  "install_activity_data_country_code": "country",
  "install_activity_data_has_app": "has app",
  "install_activity_data_has_clicked_email": "has clicked email",
  "install_activity_data_has_clicked_ad": "has clicked ad",
  "install_activity_timezone_adjusted_day": "date",
  "install_activity_touch_data_tilde_placement": "placement",
  "install_activity_data_device_type": "device type",
  "install_activity_touch_data_tilde_sub_site_name": "sub site name",
  "install_activity_data_brand": "brand",
  "install_activity_data_geo_country_en": "geo country",
  "install_activity_data_model": "model",
  "install_activity_data_geo_region_en": "region",
  "install_activity_touch_data_tilde_customer_secondary_publisher": "customer secondary publisher",
  "install_activity_touch_data_tilde_customer_placement": "customer placement",
  "install_activity_touch_data_tilde_customer_sub_site_name": "customer sub site name",
  "install_activity_touch_data_tilde_customer_campaign": "customer campaign",
  "install_activity_touch_data_tilde_customer_ad_set_name": "customer ad set name",
  "install_activity_touch_data_tilde_customer_ad_name": "customer ad name",
  "install_activity_touch_data_tilde_customer_keyword": "customer keyword",
  "install_activity_touch_data_tilde_agency_id": "agency id",
  "install_activity_touch_data_tilde_agency": "agency name",
  "customer_event_alias": "customer event alias"
}

Reengagement cohort

{
  "reengagement_activity_attributed": "attributed",
  "reengagement_activity_event_name": "event name",
  "reengagement_activity_touch_type": "type",
  "reengagement_activity_touch_data_tilde_campaign_id": "campaign id",
  "reengagement_activity_touch_data_tilde_campaign": "campaign",
  "reengagement_activity_touch_data_tilde_channel": "channel",
  "reengagement_activity_touch_data_tilde_feature": "feature",
  "reengagement_activity_touch_data_tilde_stage": "stage",
  "reengagement_activity_touch_data_tilde_tags": "tags",
  "reengagement_activity_touch_data_tilde_advertising_partner_name": "ad partner",
  "reengagement_activity_touch_data_dollar_3p": "ad partner (3p)",
  "reengagement_activity_touch_data_tilde_secondary_publisher": "secondary publisher",
  "reengagement_activity_touch_data_tilde_creative_name": "creative name",
  "reengagement_activity_touch_data_tilde_ad_id": "ad id",
  "reengagement_activity_touch_data_tilde_ad_set_id": "ad set id",
  "reengagement_activity_touch_data_tilde_ad_set_name": "ad set name",
  "reengagement_activity_touch_data_tilde_ad_name": "ad name",
  "reengagement_activity_touch_data_tilde_keyword": "keyword",
  "reengagement_activity_touch_data_tilde_journey_name": "journey name",
  "reengagement_activity_touch_data_tilde_view_name": "view name",
  "reengagement_activity_touch_data_plus_referring_domain": "referring domain",
  "reengagement_activity_touch_data_plus_via_features": "Branch feature",
  "reengagement_activity_touch_data_plus_web_format": "web format",
  "reengagement_activity_data_os": "os",
  "reengagement_activity_data_environment": "environment",
  "reengagement_activity_data_platform": "platform",
  "reengagement_activity_data_country_code": "country",
  "reengagement_activity_data_has_app": "has app",
  "reengagement_activity_data_has_clicked_email": "has clicked email",
  "reengagement_activity_data_has_clicked_ad": "has clicked ad",
  "reengagement_activity_timezone_adjusted_day": "date",
  "reengagement_activity_touch_data_tilde_placement": "placement",
  "reengagement_activity_data_device_type": "device type",
  "reengagement_activity_touch_data_tilde_sub_site_name": "sub site name",
  "reengagement_activity_data_brand": "brand",
  "reengagement_activity_data_geo_country_en": "geo country",
  "reengagement_activity_data_model": "model",
  "reengagement_activity_data_geo_region_en": "region",
  "reengagement_activity_touch_data_tilde_customer_secondary_publisher": "customer secondary publisher",
  "reengagement_activity_touch_data_tilde_customer_placement": "customer placement",
  "reengagement_activity_touch_data_tilde_customer_sub_site_name": "customer sub site name",
  "reengagement_activity_touch_data_tilde_customer_campaign": "customer campaign",
  "reengagement_activity_touch_data_tilde_customer_ad_set_name": "customer ad set name",
  "reengagement_activity_touch_data_tilde_customer_ad_name": "customer ad name",
  "reengagement_activity_touch_data_tilde_customer_keyword": "customer keyword",
  "reengagement_activity_touch_data_tilde_agency_id": "agency id",
  "reengagement_activity_touch_data_tilde_agency": "agency name",
  "customer_event_alias": "customer event alias"
}

User

json

{
  "user_data_platform": "platform (conversion event)",
  "user_data_environment": "environment (conversion event)",
  "user_data_geo_country_code": "country (conversion event)",
  "user_data_os": "os (conversion event)",
  "user_data_has_app": "has app (conversion event)",
  "user_data_standard_events_completed": "standard events completed (conversion event)",
  "user_data_custom_events_completed": "custom events completed (conversion event)",
  "user_data_has_clicked_ad": "has clicked ad (conversion event)",
  "user_data_has_clicked_email": "has clicked email (conversion event)",
  "user_data_brand": "brand (conversion event)",
  "user_data_device_type": "device type (conversion event)",
  "user_data_model": "model (conversion event)"
}

Other

json

{
  "app_id": "app id",
  "customer_event_alias": "customer event alias"
}

Measures

The measures below are supported, along with any additional custom-defined event names.

OPEN
users
Retention
ARPPU
LTV
ARPU
revenue
PURCHASE
ADD_TO_CART
ADD_TO_WISHLIST
VIEW_CART
INITIATE_PURCHASE
ADD_PAYMENT_INFO
SPEND_CREDITS
RESERVE
CLICK_AD
VIEW_AD
SEARCH
VIEW_ITEM
VIEW_ITEMS
RATE
SHARE
COMPLETE_REGISTRATION
COMPLETE_TUTORIAL
ACHIEVE_LEVEL
UNLOCK_ACHIEVEMENT
INVITE
LOGIN
SUBSCRIBE
START_TRIAL
cost
GROSS_PROFIT
ROI
ROAS
eCPA

Export format

Example JSON export

json

[
  {
    "users":200,
    "cost":"1234.45",
    "metric":"revenue",
    "measure":"ARPPU",
    "per_user":false,
    "cumulative":false,
    "data":{
      "day0":"1234.45",
      "day1":"2345.56",
      "day2":"1230.34",
      "day3":"9485.23"
    },
    "user_data_platform":"ANDROID_APP",
    "install_activity_data_tilde_advertising_partner_name":"Taptica"
  },
  {
    "users":200,
    "cost":"1234.45",
    "metric":"total_count",
    "measure":"OPEN",
    "per_user":false,
    "cumulative":false,
    "data":{
      "day0":45,
      "day1":23,
      "day2":412,
      "day3":230
    },
    "user_data_platform":"ANDROID_APP",
    "install_activity_data_tilde_advertising_partner_name":"Taptica"
  }
]

Example CSV export

Columns are generated when exporting to CSV. The columns are:

measure
metric
per_user
cumulative
users
<dimensions>
<granularity bands>

measure,metric,per_user,cumulative,users,last_attributed_touch_data_tilde_advertising_partner,day0,day1,day2
OPEN,total_count,false,false,2099,Taptica,407,0,0
ARPPU,revenue,true,false,2099,Taptica,521.0672786,15.25,25.5
ARPPU,revenue,false,false,1835,Applovin,616.900742,10.25314465,24.09589041
OPEN,total_count,false,false,1835,Applovin,475,0,0
OPEN,total_count,true,false,1760,A4G,303,0,0
ARPPU,revenue,true,false,1760,A4G,909.0080882,14.80434783,39.46875
OPEN,total_count,false,false,401,Twitter,65,0,0
ARPPU,revenue,true,false,401,Twitter,1211.638854,16.94444444,25.5
ARPPU,revenue,true,false,369,Snap,898.039303,5,0
OPEN,total_count,false,false,369,Snap,55,0,0
ARPPU,revenue,true,false,348,Facebook,1329.544306,0,0
OPEN,total_count,false,false,348,Facebook,52,0,0
OPEN,total_count,false,false,177,Apple Search Ads,1045,0,0
ARPPU,revenue,true,false,177,Apple Search Ads,60.32139244,0,0

The above example can be viewed and downloaded here: Cohort API CSV Example.

Filename format

The naming convention for export files is as follows:

<start_date>-<end_date>-<data_source>-<granularity>-<job_id>-<random 16 char string>

JSON example

2024-09-23-2024-09-25-install_cohort-day-6dad4289-0cab-49cb-bfab-1be70c2b6933-edeSKgkDSkrsHGdr.json

CSV example

2024-09-23-2024-09-25-install_cohort-day-6dad4289-0cab-49cb-bfab-1be70c2b6933-edeSKgkDSkrsHGdr.csv

Cohort API Overview

Overview ​

Benefits of Cohort API ​

Limitations ​

Getting started ​

Before you begin ​

Access ​

General access ​

Agency access ​

Authentication ​

Usage ​

Export Cohort Analytics ​

Request info ​

Response info ​

Example request & response ​

Get export download status ​

Request info ​

Response info ​

Example request & response ​

Appendix ​

Filters ​

Dimensions ​

Install cohort ​

Reengagement cohort ​

User ​

Other ​

Measures ​

Export format ​

Example JSON export ​

Example CSV export ​

Filename format ​

Overview

Benefits of Cohort API

Limitations

Getting started

Before you begin

Access

General access

Agency access

Authentication

Usage

Export Cohort Analytics

Request info

Response info

Example request & response

Get export download status

Request info

Response info

Example request & response

Appendix

Filters

Dimensions

Install cohort

Reengagement cohort

User

Other

Measures

Export format

Example JSON export

Example CSV export

Filename format
