Overview
Branch & TUNE Export Functionality
Custom exports are available for both Branch data points and TUNE data points. Please make sure to view the correct tab - Branch or TUNE - when referencing the below documentation.
The Branch Custom Exports find and queue log records that match your search criteria for export. You can do so either via the Custom Exports section in your Branch dashboard or via the API.
Custom exports endpoints are limited to a maximum of 2 million records each and can query up to 120 days prior to the date of export. Only 60 days of data can be queried at a time.
If more records are required, please make multiple requests with smaller time intervals to pull the necessary data in "batches". In some cases, Branch can increase the number of records above 2 million. Please contact Support to request an increase.
Data Changes Post iOS 14.5
Apple requires users to opt into sharing their device data through Apple's AppTrackingTransparency framework. When an install is attributed to paid ads, a 2nd install event will fire post user opt-in
Opt-ins will affect your final install count. Our recommendation is to use a different identifier (ex. IDFV) to de-dupe install events on your internal systems.
For additional information on changes post iOS 14.5, visit our FAQ Pages
Authentication
Calls to the Custom Export API require an access token parameter to be passed with each request. Access tokens are generated on a per-user basis and are permanent.
Learn how to retrieve your Access Token (a.k.a. an API Key)
Rate Limits
Rate limits depend on the endpoint you are making a request to.
For creating exports, the rate limit is 10 requests per minute and 25 requests per hour.
For checking the status of an export, the rate limit is 50 requests per minute and 1000 per hour.
Repeated requests within 60 minutes will be cached
If you make identical requests within 60 minutes of each other, you will not see multiple export jobs running. Instead, the same export job will be used. If you are using the API, the same job_id will be returned. This is to avoid the case of hundreds or thousands of requests being made for the exact same data set, within seconds or minutes of each other.
After 60 minutes, your request will kick off a new job to retrieve data.
Export Access
In order to access Custom Exports, a user will need to have both Sensitive Data and Export access.
For more details on how to give a user the required access, please read Default Access Levels, Users Roles & Permissions.
Third Party Access
Any user with access to an account’s API keys will be able to access Branch’s Custom Export API (and thus unfiltered, log-level data). As a result, we would recommend against providing third parties with the permissions required to view API keys during the invitation process.
Providing Agencies API Access
If you work with an agency that runs your advertising campaigns and want to give them access to export the subsequent data, you can provide them with access to the Custom Export API.
To provide an agency team member with access to the Custom Export API:
- In the left-hand navigation, under Setup & Testing, click on Account Settings.
- On the Account Settings page, click on the Agencies tab.
- Expand the agency in question, find the agency team member you want to give access to, hover on the button in the Actions column and click Edit.
- In the Edit Agency Team Member modal:
- Under Access Level, check the Export box.
- Under Permissions, check the Sensitive Data box.
- Optional: add data filters
- Under Data Filters, toggle any necessary data filters on/blue. Exported data will be filtered accordingly.
- Click Save.
Agency-Tagged Data
If you do not enable the Only Show Agency-Tagged Data data filter, the Agency Team Member will be able to export sensitive data associated with all of your campaigns, regardless if they are associated with them or not.
Available Topics to Export
Please refer to the full list of available topics for Branch and TUNE.
Available Fields
Please refer to the full list of available fields for Branch and TUNE.
Accessing via Branch Dashboard
We have limited the UI to exporting data for 60 days or less. In general, we recommend exporting data for a day at a time.

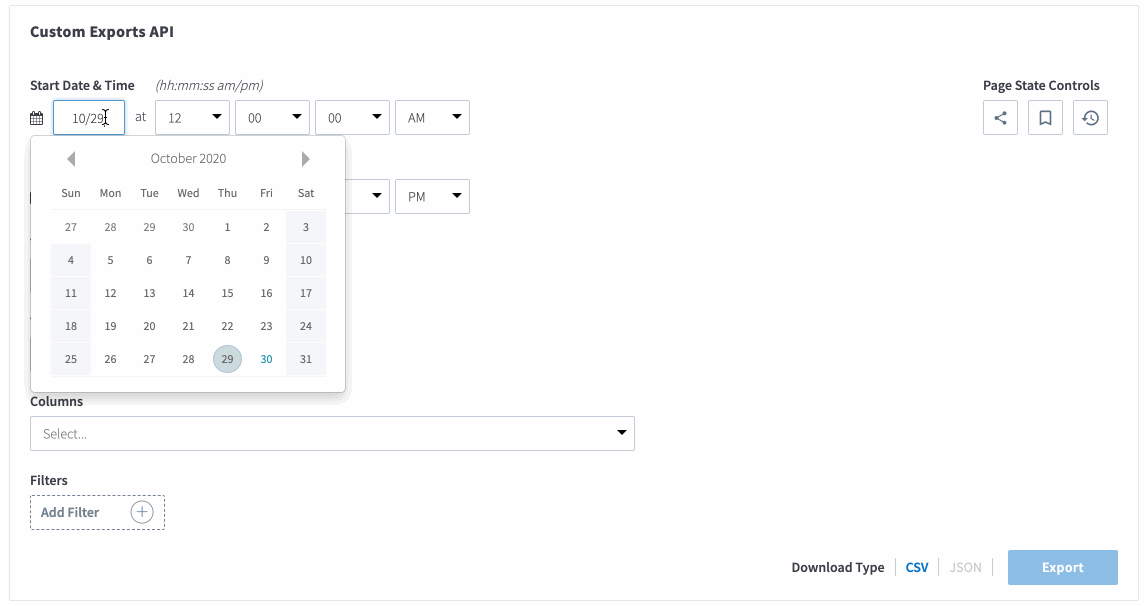

Rather than accessing the Custom Export API directly, you can use the Custom Exports section in your Branch dashboard to request the appropriate data via CSVs.
To request an export:
- In the left-hand navigation, under the Setup & Testing section, click Data Import & Export, then click on Exports.
- On the Custom Exports page, provide the following:
- The appropriate Date Range.
- The Topic type the export should include.
- The Columns of fields you want included.
- Any additional Filters you want included.
- The Download Type for the export.


You can also view any requested export in the Custom Exports Created table which includes:
- Date Created
- Topic / Date Range
- Row Count
- Format
- Status
Accessing via API
Endpoint Definitions
POST /v2/logs?organization_id=ORG_ID
POST /v2/logs?app_id=APP_ID
Headers:
Access-Token: API_KEY
Content-Type: application/json
Body: JSON parameters
Host: api2.branch.io
GET /v2/logs/JOB_ID
Headers:
Access-Token: API_KEY
Host: api2.branch.io
POST /v3/logs/advertisers/ADVERTISER_ID/exports/
Host: api.mobileapptracking.com/
GET /v3/logs/advertisers/ADVERTISER_ID/exports/JOB_ID
Host: api.mobileapptracking.com/
Building the Export Request
Find and queue all records that match search criteria for export; returns a “handle” to be used in the download export request.
advertiser_id | String Your TUNE Advertiser ID;REQUIRED. FOR TUNE CALLS ONLY |
---|
app_id | String Your Branch App ID; REQUIRED FOR BRANCH CALLS ONLY |
organization_id | String Your Branch Organization ID; optional FOR BRANCH CALLS ONLY |
api_key / access token | String Your API Key / Access Token; REQUIRED |
report_type | String The Branch EO topic to be exported; REQUIRED |
start_date | Date Dates without offsets (i.e. a timezone) default to the value provided for the timezone parameter. If the timezone parameter is not specified, the dates timezone defaults to UTC. Date must be within the last 120 days. Example: 2016-01-01T00:00:00Z |
end_date | Date Dates without offsets (i.e. a timezone) default to the value provided for the timezone parameter. If the timezone parameter is not specified, the dates timezone defaults to UTC. Example: 2016-01-01T23:59:59:999Z |
timezone | Timezone Timezone for results. Accepts tz database strings like ‘America/Los_Angeles’. Optional parameter; results are returned in the dashboard timezone if not provided. Will default to UTC only if dashboard timezone is not set |
filter | Filter BRANCH CALLS ONLY; Filter by fields and boolean operators against fields of the LogInstalls model; must be URI encoded and JSON parsed. Example: |
filter_cthulhu | Filter TUNE CALLS ONLY; Filter by fields and boolean operators against fields of the LogInstalls model; must be URI encoded and JSON parsed. See the Appendix for the Cthulhu Filter Specification. Example: |
fields | Comma Separated List List of comma-separated fields desired in results. REQUIRED |
limit | Integer Limit the number of items returned per request. Maximum allowed value is 2 million. If more than 2 million records are required, please make multiple requests with smaller time intervals to pull the data needed in “batches”; REQUIRED |
response_format | Nullable String Format of the response; can be either "json" or "csv". If not selected, defaults to CSV. Branch uses UTF-8 encoding for CSV files. |
Sample Export Request
curl -X POST 'https://api2.branch.io/v2/logs?app_id=123456700098765432'
-H "Content-Type: application/json"
-H "Access-Token: YOUR_ACCESS_TOKEN_HERE"
-d '{"report_type": "eo_open",
"limit": 100,
"fields": ["timestamp","name"],
"start_date": "2019-12-09T00:00:00Z",
"end_date": "2019-12-09T01:59:59Z",
"filter": ["gt","last_attributed_touch_timestamp", 1604015756]
}'
https://api.mobileapptracking.com/v3/logs/advertisers/ADVERTISER_ID/exports/installs?api_key=YOUR_ACCESS_TOKEN_HERE&start_date=2019-01-14T00:00:00&end_date=2019-01-15T00:00:00&timezone=UTC&fields=site.name,site.id,device_ip&limit=100&response_format=csv
Sample Export Response
{"handle":"1612dbb3-85ef-49f8-b1c5-5818c163600c","export_job_status_url":"http://api2.branch.io/v2/logs/1612dbb3-85ef-49f8-b1c5-5818c163600c?app_id=123456700098765432"}
{"handle":"0818e641-cd5c-4498-8a17-77152689bb94","export_job_status_url":"http://api.mobileapptracking.com/v3/logs/advertisers/ADVERTISER_ID/exports/0818e641-cd5c-4498-8a17-77152689bb94?api_key=YOUR_ACCESS_TOKEN_HERE","branch_url":"http://tlnk.branch.io/v3/logs/advertisers/ADVERTISER_ID/exports/installs?start_date=2019-01-14T00%3A00%3A00%2B00%3A00&end_date=2019-01-15T00%3A00%3A00%2B00%3A00&fields=site.name%2Csite.id%2Cdevice_ip&filter_cthulhu=%5B%22in%22%2C%20%22advertiser_id%22%2C%20ADVERTISER_ID%5D&response_format=csv&timezone=UTC&limit=100&api_key=YOUR_ACCESS_TOKEN_HERE"}
Building the Download Export Request
Finds and exports requested queue (by handle) and provides URL location for download.
advertiser_id | String Your TUNE Advertiser ID; REQUIRED ONLY FOR TUNE CALLS |
---|
api_key / access token | String Your API Key / Access Token; REQUIRED |
handle | String The ID returned by the log export queue. REQUIRED |
Sample Download Export Request
curl -X GET http://api2.branch.io/v2/logs/<YOUR_HANDLE>\?app_id\=<YOUR_BRANCH_APP_ID>
-H "Content-Type: application/json"
-H "Access-Token:<YOUR_ACCESS_TOKEN>"
http://api.mobileapptracking.com/v3/logs/advertisers/ADVERTISER_ID/exports/0818e641-cd5c-4498-8a17-77152689bb94?api_key=YOUR_ACCESS_TOKEN_HERE
Sample Download Export Response
{"code":200,"lines_exported":2000000,"status":"complete","response_url":"https://branch-exports-web.s3.amazonaws.com/732662944269095814-eo_open-2019-12-10-2019-12-10-1612dbb3-85ef-49f8-b1c5-5818c163600c-bUlN2lwyTE10qIVH.csv?Signature=YOUR_ACCESS_TOKEN_HERE&AWSAccessKeyId=YOUR_ACCESS_TOKEN_HERE&Expires=1577305615"}
{"report_schedule_id": null, "lines_exported": null, "context": "", "url": "https://branch-exports-web.s3.amazonaws.com/ADVERTISER_ID-installs-2019-01-14-2019-01-15-0818e641-cd5c-4498-8a17-77152689bb94-wxGQxyHo0Djw2ktt.csv?Signature=5XN9MRMftyQ1XafNSTW4STMpT9U%3D&AWSAccessKeyId=AKIAI7A6NRHGMRDK2LIQ&Expires=1548295211", "percent_complete": 100, "status": "complete", "branch_url": "http://tlnk.branch.io/v3/logs/advertisers/ADVERTISER_ID/exports/0818e641-cd5c-4498-8a17-77152689bb94?api_key=YOUR_ACCESS_TOKEN_HERE"}
Appendix
Branch Available Topics
Topic | Human Readable Name |
---|---|
| Blocked Clicks |
| Blocked Commerce Events |
| Blocked Content Events |
| Blocked CTA Views |
| Blocked Custom Events |
| Blocked Impressions |
| Blocked Installs |
| Blocked Opens |
| Blocked Pageviews |
| Blocked Reinstalls |
| Blocked SMS Sent |
| Blocked User Lifecycle Events |
| Blocked Web Session Starts |
| Clicks |
| Commerce Events |
| Content Events |
| CTA Views |
| Custom Events |
| Impressions |
| Installs |
| Opens |
| Pageviews |
| Postback Records |
| Reinstalls |
| SKAdNetwork Invalid Messages |
| SKAdNetwork Valid Messages |
| SMS Sent |
| User Lifecycle Events |
| Web Session Starts |
| Web To App Auto Redirects |
Blocked Topics
Branch allows the export of blocked topics for up to 60 days from the time of the request.
TUNE Available Topics
- Clicks
- Event Items
- Events
- Impressions
- Installs
- Opens
Branch Available EO Fields
Branch Available Fields |
---|
app_id | Long App ID (pls capitalize ID in Liveview) |
attributed | Boolean Attributed |
content_items | ArrayStruct Content Items |
custom_data | MapStringString Custom Data |
customer_event_alias | String Customer Event Alias |
days_from_last_attributed_touch_to_event | Integer Days From Last Attributed Touch To Event |
deep_linked | Deep Linked |
di_match_click_token | Long DI Match Click Token |
event_data_ad_type | enum { BANNER, INTERSTITIAL, REWARDED_VIDEO, NATIVE } Ad Type |
event_data_affiliation | String Affiliation |
event_data_coupon | String Coupon |
event_data_currency | String Currency |
event_data_description | String Event Description |
event_data_exchange_rate | Double Exchange Rate |
event_data_revenue | Double Revenue |
event_data_revenue_in_usd | Double Revenue In USD |
event_data_search_query | String Search Query |
event_data_shipping | Shipping |
event_data_tax | Double Tax |
event_data_transaction_id | String Transaction ID |
event_timestamp | Long Event Timestamp |
existing_user | Boolean Existing User |
external_intent_uri | String External Intent URI |
first_event_for_user | Boolean First Event For User |
hash_version | String Hash Version |
hours_from_last_attributed_touch_to_event | Integer House From Last Attributed Touch To Event |
id | String ID |
install_activity_attributed | Boolean Install Attributed |
install_activity_data_has_clicked_ad | Boolean Install Has Clicked Ad |
install_activity_data_has_clicked_email | Boolean Install Has Clicked Email |
install_activity_timestamp | Long Install Timestamp |
install_activity_touch_data_additional_data_tilde_ad_id | Long Install Ad ID |
install_activity_touch_data_additional_data_tilde_ad_set_id | Long Install Ad Set ID |
install_activity_touch_data_additional_data_tilde_campaign_id | Long Install Campaign ID |
install_activity_touch_data_additional_data_tilde_creative_id | Long Install Creative ID |
install_activity_touch_data_dollar_3p | String Install Partner 3p Value |
install_activity_touch_data_plus_via_features | String Install Features |
install_activity_touch_data_plus_web_format | String Install Web Format |
install_activity_touch_data_tilde_ad_name | String Install Ad Name |
install_activity_touch_data_tilde_ad_set_name | String Install Ad Set Name |
install_activity_touch_data_tilde_advertising_partner_id | Long Install Ad Partner ID |
install_activity_touch_data_tilde_advertising_partner_name | String Install Ad Partner |
install_activity_touch_data_tilde_agency | String Install Agency |
install_activity_touch_data_tilde_agency_id | Long Install Agency ID |
install_activity_touch_data_tilde_campaign | String Install Campaign |
install_activity_touch_data_tilde_channel | String Install Channel |
install_activity_touch_data_tilde_creative_name | String Install Creative Name |
install_activity_touch_data_tilde_customer_ad_name | String Install Customer Ad Name |
install_activity_touch_data_tilde_customer_ad_set_name | String Install Customer Ad Set Name |
install_activity_touch_data_tilde_customer_campaign | String Install Customer Campaign |
install_activity_touch_data_tilde_customer_keyword | String Install Customer Keyword |
install_activity_touch_data_tilde_customer_placement | String Install Customer Placement |
install_activity_touch_data_tilde_customer_secondary_publisher | String Install Customer Secondary Publisher |
install_activity_touch_data_tilde_customer_sub_site_name | String Install Customer Sub Site Name |
install_activity_touch_data_tilde_feature | String Install Feature |
install_activity_touch_data_tilde_journey_name | String Install Journey Name |
install_activity_touch_data_tilde_keyword | String Install Keyword |
install_activity_touch_data_tilde_placement | String Install Placement |
install_activity_touch_data_tilde_secondary_publisher | String Install Secondary Publisher |
install_activity_touch_data_tilde_stage | String Install Stage |
install_activity_touch_data_tilde_tags | String Install Tags |
install_activity_touch_data_tilde_view_name | String Install View Name |
install_activity_touch_type | String Install Touch Type |
last_attributed_touch_data_custom_fields | String Last Attributed Touch Custom Fields |
last_attributed_touch_data_dollar_3p | String Ad Partner (3p) |
last_attributed_touch_data_plus_current_feature | String Current Feature |
last_attributed_touch_data_tilde_id | Long Last Attributed Touch ID |
last_attributed_touch_data_plus_touch_id | String Last Attributed Touch Touch ID |
last_cta_view_data_plus_touch_id | String Last CTA View Touch ID |
last_attributed_touch_data_plus_via_features | ArrayString Via Features |
last_attributed_touch_data_plus_web_format | String Web Format |
last_attributed_touch_data_tilde_ad_id | String Ad ID |
last_attributed_touch_data_tilde_ad_name | String Ad Name |
last_attributed_touch_data_tilde_ad_set_id | String Ad Set ID |
last_attributed_touch_data_tilde_ad_set_name | String Ad Set Name |
last_attributed_touch_data_tilde_advertising_account_name | String Advertising Account Name |
last_attributed_touch_data_tilde_advertising_account_id | String Advertising Account ID |
last_attributed_touch_data_tilde_advertising_partner_id | String Ad Partner ID |
last_attributed_touch_data_tilde_advertising_partner_name | String Ad Partner |
last_attributed_touch_data_tilde_agency | String Agency |
last_attributed_touch_data_tilde_agency_id | String Agency ID |
last_attributed_touch_data_tilde_banner_dimensions | String Banner Dimensions |
last_attributed_touch_data_tilde_branch_ad_format | String Branch Ad Format |
last_attributed_touch_data_tilde_campaign | String Campaign |
last_attributed_touch_data_tilde_campaign_id | String Campaign ID |
last_attributed_touch_data_tilde_campaign_type | String Campaign Type |
last_attributed_touch_data_tilde_channel | String Channel |
last_attributed_touch_data_tilde_creative_name | String Creative Name |
last_attributed_touch_data_tilde_creative_id | String Creative ID |
last_attributed_touch_data_tilde_customer_ad_name | String Customer Ad Name |
last_attributed_touch_data_tilde_customer_ad_set_name | String Customer Ad Set Name |
last_attributed_touch_data_tilde_customer_campaign | String Customer Campaign |
last_attributed_touch_data_tilde_customer_keyword | String Customer Keyword |
last_attributed_touch_data_tilde_customer_placement | String Customer Placement |
last_attributed_touch_data_tilde_customer_secondary_publisher | String Customer Secondary Publisher |
last_attributed_touch_data_tilde_customer_sub_site_name | String Customer Sub Site Name |
last_attributed_touch_data_tilde_external_touch_id | String External Touch ID |
last_attributed_touch_data_tilde_feature | String Feature |
last_attributed_touch_data_tilde_journey_id | String Journey ID |
last_attributed_touch_data_tilde_journey_name | String Journey Name |
last_attributed_touch_data_tilde_keyword | String Keyword |
last_attributed_touch_data_tilde_keyword_id | String Keyword ID |
last_attributed_touch_data_tilde_optimization_model | String Optimization Model |
last_attributed_touch_data_tilde_placement | String Placement |
last_attributed_touch_data_tilde_placement_id | String Placement ID |
last_attributed_touch_data_tilde_secondary_ad_format | String Secondary Ad Format |
last_attributed_touch_data_tilde_secondary_publisher | String Secondary Publisher |
last_attributed_touch_data_tilde_secondary_publisher_id | String Secondary Publisher ID |
last_attributed_touch_data_tilde_stage | String Stage |
last_attributed_touch_data_tilde_sub_site_name | String Sub Site Name |
last_attributed_touch_data_tilde_tags | ArrayString Tags |
last_attributed_touch_data_tilde_technology_partner | String Technology Partner |
last_attributed_touch_data_tilde_touch_subtype | String Google Video Ads "Engaged View" |
last_attributed_touch_data_tilde_tune_publisher_id | Long TUNE Publisher ID |
last_attributed_touch_data_tilde_tune_publisher_name | String TUNE Publisher Name |
last_attributed_touch_data_tilde_view_id | String View ID |
last_attributed_touch_data_tilde_view_name | String View Name |
last_attributed_touch_timestamp | Long Last Attributed Touch Timestamp |
last_attributed_touch_timestamp_iso | String Last Attributed Touch Timestamp (ISO) |
last_attributed_touch_type | String Last Attributed Touch Type |
last_cta_view_data_custom_fields | String Last CTA View Custom Fields |
last_cta_view_data_dollar_3p | String Last CTA View Ad Partner (3p) |
last_attributed_touch_data_plus_referring_domain | String Referring Domain |
last_cta_view_data_plus_via_features | ArrayString Last CTA View Via Features |
last_cta_view_data_plus_web_format | String Last CTA View Web Format |
last_cta_view_data_tilde_ad_id | String Last CTA View Ad ID |
last_cta_view_data_tilde_ad_name | String Last CTA View Ad Name |
last_cta_view_data_tilde_ad_set_id | String Last CTA View Ad Set ID |
last_cta_view_data_tilde_ad_set_name | String Last CTA View Ad Set Name |
last_cta_view_data_tilde_advertising_partner_name | String Last CTA View Ad Partner |
last_cta_view_data_tilde_agency | String Last CTA View Agency |
last_cta_view_data_tilde_banner_dimensions | String Last CTA View Banner Dimensions |
last_cta_view_data_tilde_branch_ad_format | String Last CTA View Branch Ad Format |
last_cta_view_data_tilde_campaign | String Last CTA View Campaign |
last_cta_view_data_tilde_campaign_id | String Last CTA View Campaign ID |
last_cta_view_data_tilde_campaign_type | String Last CTA View Campaign Type |
last_cta_view_data_tilde_channel | String Last CTA View Channel |
last_cta_view_data_tilde_creative_id | String Last CTA View Creative ID |
last_cta_view_data_tilde_creative_name | String Last CTA View Creative Name |
last_cta_view_data_tilde_external_touch_id | Long Last CTA View External Touch ID |
last_cta_view_data_tilde_feature | String Last CTA View Feature |
last_cta_view_data_tilde_id | Long Last CTA View ID |
last_cta_view_data_tilde_keyword_id | String Last CTA View Keyword ID |
last_cta_view_data_tilde_optimization_model | String Last CTA View Optimization Model |
last_cta_view_data_tilde_placement | String Last CTA View Placement |
last_cta_view_data_tilde_secondary_ad_format | String Last CTA View Secondary Ad Format |
last_cta_view_data_tilde_secondary_publisher | String Last CTA View Secondary Publisher |
last_cta_view_data_tilde_stage | String Last CTA View Stage |
last_cta_view_data_tilde_tags | ArrayString Last CTA View Tags |
last_cta_view_data_tilde_technology_partner | String Last CTA View Technology Partner |
last_cta_view_timestamp | Long Last CTA View Timestamp |
last_cta_view_timestamp_iso | String Last CTA View Timestamp (ISO) |
minutes_from_last_attributed_touch_to_event | Integer Minutes From Last Attributed Touch To Event |
name | String Name |
organization_id | Long Organization ID |
organization_name | String Organization Name |
origin | String Origin |
reengagement_activity_attributed | Boolean Reengagement Activity Attributed |
reengagement_activity_data_has_clicked_ad | Boolean Reengagement Has Clicked Ad |
reengagement_activity_data_has_clicked_email | Boolean Reengagement Has Clicked Email |
reengagement_activity_timestamp | String Reengagement Timestamp |
reengagement_activity_touch_data_additional_data_tilde_ad_id | Long Reengagement Ad ID |
reengagement_activity_touch_data_additional_data_tilde_ad_set_id | Long Reengagement Ad Set ID |
reengagement_activity_touch_data_additional_data_tilde_campaign_id | Long Reengagement Campaign ID |
reengagement_activity_touch_data_additional_data_tilde_creative_id | Long Reengagement Creative ID |
reengagement_activity_touch_data_dollar_3p | String Reengagement Partner 3p Value |
reengagement_activity_touch_data_plus_via_features | String Reengagement Features |
reengagement_activity_touch_data_plus_web_format | String Reengagement Web Format |
reengagement_activity_touch_data_tilde_ad_name | String Reengagement Ad Name |
reengagement_activity_touch_data_tilde_ad_set_name | String Reengagement Ad Set Name |
reengagement_activity_touch_data_tilde_advertising_partner_id | Long Reengagement Advertising Partner ID |
reengagement_activity_touch_data_tilde_advertising_partner_name | String Reengagement Advertising Partner Name |
reengagement_activity_touch_data_tilde_agency | String Reengagement Agency |
reengagement_activity_touch_data_tilde_agency_id | Long Reengagement Agency ID |
reengagement_activity_touch_data_tilde_campaign | String Reengagement Campaign |
reengagement_activity_touch_data_tilde_channel | String Reengagement Channel |
reengagement_activity_touch_data_tilde_creative_name | String Reengagement Creative Name |
reengagement_activity_touch_data_tilde_customer_ad_name | String Reengagement Customer Ad Name |
reengagement_activity_touch_data_tilde_customer_ad_set_name | String Reengagement Customer Ad Set Name |
reengagement_activity_touch_data_tilde_customer_campaign | String Reengagement Customer Campaign |
reengagement_activity_touch_data_tilde_customer_keyword | String Reengagement Customer Keyword |
reengagement_activity_touch_data_tilde_customer_placement | String Reengagement Customer Placement |
reengagement_activity_touch_data_tilde_customer_secondary_publisher | String Reengagement Customer Secondary Publisher |
reengagement_activity_touch_data_tilde_customer_sub_site_name | String Reengagement Customer Sub Site |
reengagement_activity_touch_data_tilde_feature | String Reengagement Feature |
reengagement_activity_touch_data_tilde_journey_name | String Reengagement Journey Name |
reengagement_activity_touch_data_tilde_keyword | String Reengagement Keyword |
reengagement_activity_touch_data_tilde_placement | String Reengagement Placement |
reengagement_activity_touch_data_tilde_secondary_publisher | String Reengagement Secondary Publisher |
reengagement_activity_touch_data_tilde_stage | String Reengagement Stage |
reengagement_activity_touch_data_tilde_tags | String Reengagement Tags |
reengagement_activity_touch_data_tilde_view_name | String Reengagement View Name |
reengagement_activity_touch_type | String Reengagement Touch Type |
referrer_click_timestamp | Long Referrer Click Timestamp |
seconds_from_install_to_event | Integer Seconds From Install To Event |
seconds_from_last_attributed_touch_to_event | Integer Seconds From Last Attributed Touch To Event |
seconds_from_last_attributed_touch_to_store_install_begin | Integer Seconds From Touch To Store Install Begin |
site_event_items_count | Integer Content Items Count |
store_install_begin_timestamp | Long Store Install Begin Timestamp |
timestamp | Long Timestamp |
timestamp_iso | String Timestamp (ISO) |
tune_site_event_id | Long TUNE Site Event ID |
tune_site_id | Long TUNE Site ID |
tune_site_name | String TUNE Site Name |
user_data_aaid | String AAID |
user_data_android_id | String Android ID |
user_data_app_package_name | String App Package Name |
user_data_app_version | String App Version |
user_data_brand | String Brand |
user_data_browser | String Browser |
user_data_build | String Build |
user_data_cpu_type | String CPU Type |
user_data_cross_platform_id | String Cross Platform ID |
user_data_developer_identity | String Developer Identity |
user_data_device_type | String Device Type |
user_data_environment | String Environment |
user_data_geo_city_code | Integer City Code |
user_data_geo_city_en | Integer City |
user_data_geo_country_code | String Country Code |
user_data_geo_country_en | String Country |
user_data_geo_dma_code | Integer DMA Code |
user_data_geo_lat | Float Latitude |
user_data_geo_lon | Float Longitude |
user_data_geo_postal_code | String Postal Code |
user_data_geo_region_en | String Region |
user_data_geo_region_code | String Region Code |
user_data_http_referrer | String HTTP Referrer |
user_data_idfa | String IDFA |
user_data_idfv | String IDFV |
user_data_installer_package_name | String installer Package Name |
user_data_internet_connection_type | String Internet Connection Type |
user_data_ip | String IP Address |
user_data_is_jailbroken | Boolean IIs Jailbroken |
user_data_kindle_id | String Kindle ID |
user_data_language | String Language |
user_data_limit_ad_tracking | Boolean Limit Ad Tracking |
user_data_model | String Model |
user_data_os | String OS |
user_data_os_version | String OS Version |
user_data_os_version_android | String OS Version (Android) |
user_data_past_cross_platform_ids | ArrayString Past Cross Platforms IDs |
user_data_platform | ArrayString Platform |
user_data_prob_cross_platform_ids | ArrayStruct Probabilistic Cross Platform IDs |
user_data_roku_rida | String Roku Device ID |
user_data_screen_height | Integer Screen Height |
user_data_screen_width | Integer Screen Width |
user_data_sdk_version | String SDK Version |
user_data_tune_mat_id | String TUNE MAT ID |
user_data_user_agent | String User Agent |
user_data_windows_aid | String Windows AID |
user_data_device_locale | String Device Locale |
user_data_carrier_name | String Carrier Name |
Branch Available SKAdNetwork Message Fields
id | varchar SkAdNetwork Message ID |
---|
body_transaction_id | varchar SKAdNetwork Transaction ID |
body_version | varchar SKAdNetwork Version |
body_ad_network_id | varchar SKAdNetwork Ad Network ID |
body_campaign_id | integer SKAdNetworkCampaign ID |
body_app_id | bigint SKAdNetwork App ID (App Store ID) |
body_attribution_signature | varchar Body Attribution Signature |
body_redownload | boolean SKAdNetwork Redownload |
body_source_app_id | bigint SKAdNetwork Source App ID |
body_conversion_value | integer Body Conversion Value |
last_attributed_touch_data_tilde_creative_name | varchar Ad Partner Creative Name |
last_attributed_touch_data_tilde_ad_set_name | varchar Ad Partner Ad Set Name |
last_attributed_touch_data_tilde_creative_id | varchar Ad Partner Creative ID |
last_attributed_touch_data_tilde_ad_set_id | varchar Ad Partner Ad Set ID |
last_attributed_touch_data_tilde_ad_name | varchar Ad Network Ad Name |
last_attributed_touch_data_tilde_ad_id | varchar Ad Partner Ad ID |
last_attributed_touch_data_tilde_campaign_id | varchar Ad Partner Campaign ID |
last_attributed_touch_data_tilde_campaign | varchar Ad Partner Campaign Name |
invalid_reason | varchar Invalid Reason |
timestamp | bigint Timestamp |
annotation_app_id | bigint Annotation App ID |
annotation_organization_id | bigint Annotation Organization ID |
annotation_dollar_3p | varchar Annotation Dollar 3P |
annotation_conversion_value_mapped_value | varchar Annotation Conversion Vale Mapped Value |
annotation_conversion_value_revision | varchar Annotation Conversion Value Revision |
app_id | bigint Branch App ID |
organization_id | bigint Branch Organization ID |
IP Discrepancies
Geographic data, such as country and city, may not be available for a very small percentage of events where the IP cannot be resolved to a location.
TUNE Available Fields
IP Discrepancies
Geographic data, such as country and city, may not be available for a very small percentage of events where the IP cannot be resolved to a location.
Discontinued Fields
Some fields have very limited value to our customers and as such have been discontinued. Discontinued fields will not be available via the Custom Export API. Please work with your CSM or our Support team if you have questions or concerns.
Info
Branch does not support exports of the infrequently-used update and postbacks TUNE topics.
ad_network_id Ad Network ID |
---|
ad_network_name Ad Network Name |
advertiser_id Advertiser ID |
advertiser_name Advertiser Name |
advertiser_opt_out Advertiser Opt Out |
advertiser_ref_id Advertiser Ref ID |
advertiser_sub_ad_name My Ad Name |
advertiser_sub_ad_ref My Ad Ref |
advertiser_sub_adgroup_name My Adgroup Name |
advertiser_sub_adgroup_ref My Adgroup Ref |
advertiser_sub_campaign_name My Campaign Name |
advertiser_sub_campaign_ref My Campaign Ref |
advertiser_sub_keyword_name My Keyword Name |
advertiser_sub_keyword_ref My Keyword Ref |
advertiser_sub_placement_name My Placement Name |
advertiser_sub_placement_ref My Placement Ref |
advertiser_sub_publisher_name My Publisher Name |
advertiser_sub_publisher_ref My Publisher Ref |
advertiser_sub_site_name My Site Name |
advertiser_sub_site_ref My Site Ref |
agency_id Agency ID |
agency_name Agency Name |
app_version App Version |
attribute_sub1 Attribute Sub1 |
attribute_sub2 Attribute Sub2 |
attribute_sub3 Attribute Sub3 |
attribute_sub4 Attribute Sub4 |
attribute_sub5 Attribute Sub5 |
branch_app_id Branch App ID |
click_created Click Created |
country_code Country Code |
country_name Country Name |
created Created |
currency_code Currency Code |
device_brand Device Brand |
device_carrier Device Carrier |
device_ip Device IP |
device_model Device Model |
device_type Device Type |
download_date Download Date |
event_type Event Type |
existing_user Existing User |
google_ad_tracking Google Ad Tracking Enabled |
google_aid Google Advertising ID |
id ID |
impression_created Impression Created |
install_created Install Created |
install_date Install Date |
install_publisher_name Install Publisher Name |
ios_ad_tracking iOS Ad Tracking Enabled |
ios_ifa iOS IDFA |
ios_ifv iOS IDFV |
ip IP |
is_view_through Is View Through |
language Language |
latitude Latitude |
longitude Longitude |
mat_id Mat ID |
metro_code Metro Code |
os_id OS ID |
os_jailbroke Jailbroken |
os_version OS Version |
package_name Package Name |
platform_aid Platform AID |
postal_code Postal Code |
publisher_adgroup_id Publisher Adgroup ID |
publisher_id Publisher ID |
publisher_name Publisher Name |
publisher_ref_id Publisher Ref ID |
publisher_sub_ad_id Publisher Sub Ad ID |
publisher_sub_ad_name Publisher Sub Ad Name |
publisher_sub_ad_ref Publisher Sub Ad Ref |
publisher_sub_adgroup_name Publisher Sub Adgroup Name |
publisher_sub_adgroup_ref Publisher Sub Adgroup Ref |
publisher_sub_campaign_id Publisher Sub Campaign ID |
publisher_sub_campaign_name Publisher Sub Campaign Name |
publisher_sub_campaign_ref Publisher Sub Campaign Ref |
publisher_sub_channel Publisher Sub Channel |
publisher_sub_feature Publisher Sub Feature |
publisher_sub_keyword_id Publisher Sub Keyword ID |
publisher_sub_keyword_name Publisher Sub Keyword Name |
publisher_sub_keyword_ref Publisher Sub Keyword Ref |
publisher_sub_placement_id Publisher Sub Placement ID |
publisher_sub_placement_name Publisher Sub Placement Name |
publisher_sub_placement_ref Publisher Sub Placement Ref |
publisher_sub_publisher_id Publisher Sub Publisher ID |
publisher_sub_publisher_name Publisher Sub Publisher Name |
publisher_sub_publisher_ref Publisher Sub Publisher Ref |
publisher_sub_site_name Publisher Sub Site Name |
publisher_sub1 Publisher Sub1 |
publisher_sub2 Publisher Sub2 |
publisher_sub3 Publisher Sub3 |
publisher_sub4 Publisher Sub4 |
publisher_sub5 Publisher Sub5 |
publisher_sub_stage Publisher Sub Stage |
publisher_sub_tags Publisher Sub Tags |
region_name Region Name |
revenue Revenue |
revenue_usd Revenue USD |
sdk SDK |
sdk_version SDK Version |
search_string Search String |
session_datetime Session Datetime |
site_event_id Site Event ID |
site_event_name Site Event Name |
site_event_type Site Event Type |
site_id Site ID |
site_name Site Name |
stat_click_id Click ID |
stat_impression_id Impression ID |
transaction_id Transaction ID |
user_agent User Agent |
user_id User ID |
windows_aid Windows Advertising ID |
wurfl_brand_name Brand Name |
wurfl_device_os Device OS |
wurfl_device_os_version Device OS Version |
wurfl_model_name Model Name |
Field Value Changes
When exporting the following fields, you will notice a difference between the value TUNE provides vs the value Branch provides.
- Country Name
- TUNE: Korea - South
- Branch: Republic of Korea
- Region Name
- TUNE: seoul teugbyeoisi
- Branch: Seoul
- City Code
- TUNE: 2261 (Seoul)
- Branch: 1835848 (Seoul)
- Language
- TUNE: ko, ko-KR, en-KR
- Branch: KO
Including Fields from Related Data Objects
Related objects no longer use periods .
to access the properties on the object. Rather, field names use underscores _
only.
For example, site_event.id
will now be exported as site_event_id
.
Cthulhu Filter Specification
Cthulhu is a prefix notation syntax written in JSON for specifying filters on records (usually column-based records).
Purpose
Easily parses into an abstract syntax tree.
Glossary
any
- any valid json basic value (number, string)
...
- previous item in a list can repeat as many times as necessary
Name | Spec | Example | SQL Equivalent |
---|---|---|---|
eq | ["eq",<column:string>, | ["eq","x", 1] | x= 1 |
gt | ["gt",<column:string>, | ["gt","x", 1] | x> 1 |
gte | ["gte",<column:string>, | ["gte","x", 1] | x >= 1 |
lt | ["lt",<column:string>, | ["lt","x", 1] | x< 1 |
lte | ["lte",<column:string>, | ["lte","x", 1] | x <= 1 |
like | ["like",<column:string>, | ["like", "x", ". *foobar"] | x LIKE "% |
between | ["between",<column:string>, | ["between", "x",1, 2] | x x >= 1 AND x <= 2 |
In | ["in", <column: string>, <value: any>, ...] | ["in","x", 1,2, 3] | x IN (1,2,3) |
and | ["and", , ...] | ["and",["gt","x", 1],["lt","x", 2]] | x> 1 AND x < 2 |
or | ["or", , ...] | ["or",["eq","x", 1],["eq", | x = 1 OR x= 2 |
not | ["not",] | ["not",["eq","x", 1]] | x != 1 |
array_contains | ["array_contains", , ] | ["array_contains","last_attributed_touch_data_tilde_tags","Share"] | array_contains(array(1, 2, 3), 2) |
Updated 17 days ago
