Summary Analytics Page

Overview

The Summary Analytics Page provides a global overview of your most pertinent analytics across the Branch suite of products.

On the Summary page you can quickly view analytics for:

  • All Data (default view)
  • Journeys
  • Quick Links
  • Universal Ads
  • Universal Email

By default, the Summary page loads with the following options pre-selected:

  • View: All Data
  • Date Range: Last 7 days
  • Data Tiles: Clicks / Installs / Opens / Reinstalls
  • Data Graph: Show Installs Compared by Ad Partner
  • Data Table: Show Clicks / Installs / Opens / Reinstalls Compared by Ad Partner

📘

Number of Records Shown

We will load the top 5,000 records for each event or metric. Some low-volume records may be missing from the displayed analytics when looking at many different compare bys. In particular, data sorted by ascending values may be limited.

To reduce the amount of data fetched, try adding additional filters or looking at a shorter time range. Alternatively, you can export your data using webhooks or our Data Export API.

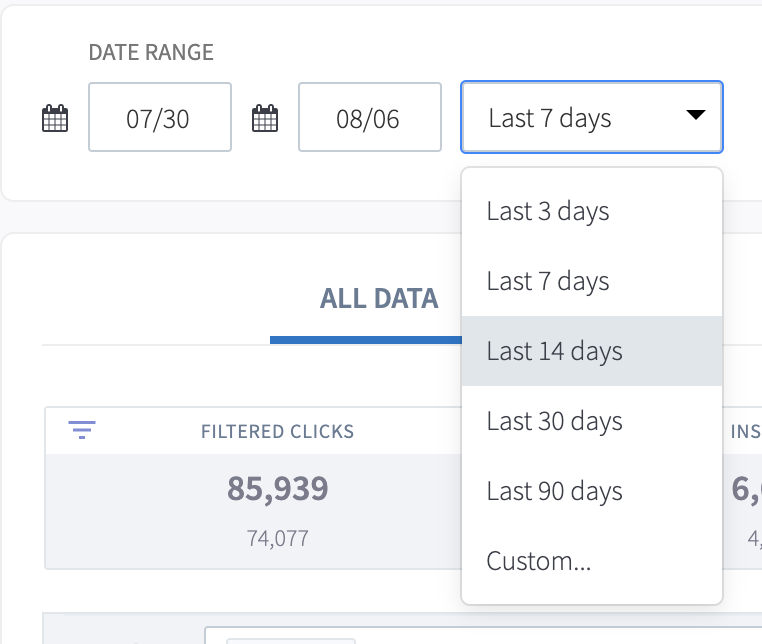

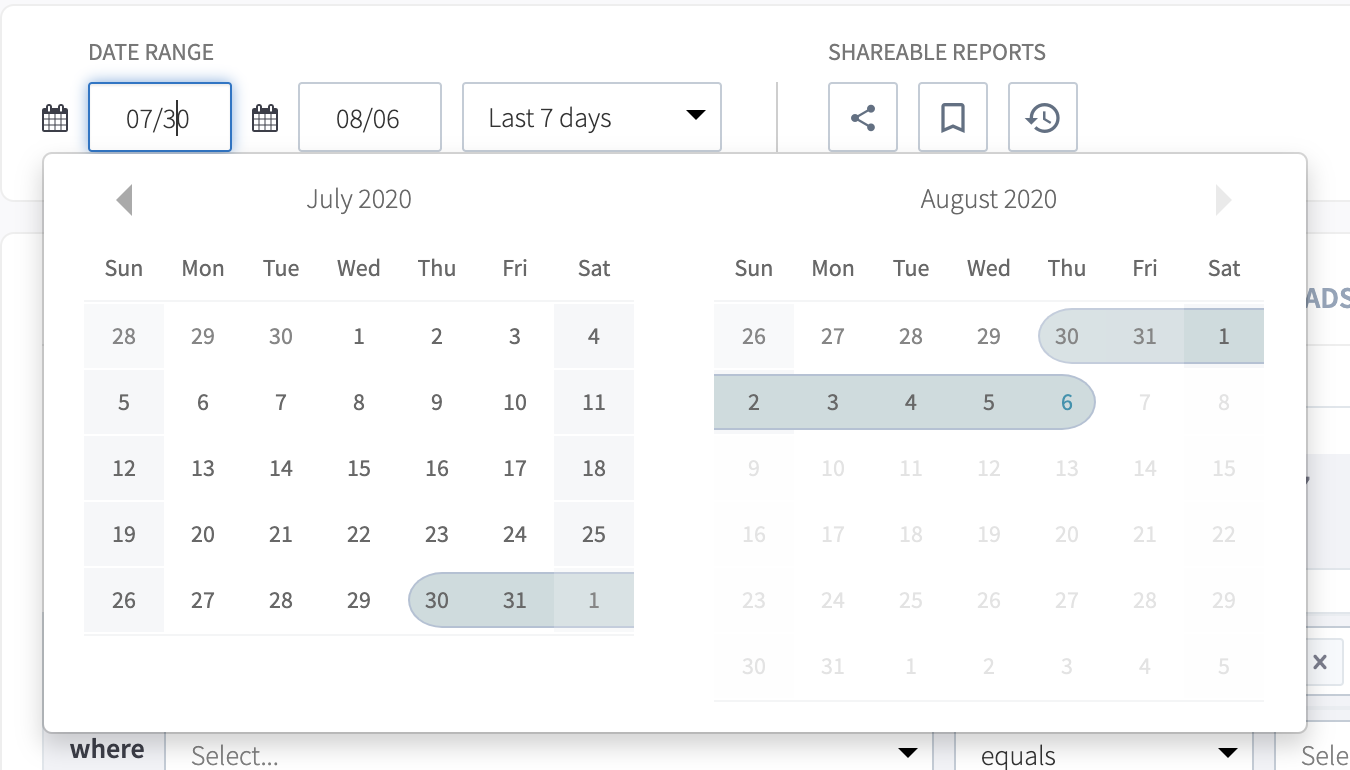

Modify Date Range

The Summary page automatically loads the last 7 days of data, but can be extended to include the previous 6 months of data.

To modify the date range for which data is populated:

  1. In the upper left-hand corner, under Date Range:
    a. Use the date picker

b. Use the drop-down to select one of the following common date ranges:

  1. Last 3 days
  2. Last 7 days
  3. Last 14 days
  4. Last 30 days
  5. Last 90 days
  6. Custom

Customize Metrics

The Data Tiles, Data Graph and the Data Table all can be customized to not only show different metrics, but also can be filtered and further modified.

Data Tiles

Each data tile includes the following information:

  • Large number represents metric for current time period.
  • Small number represents metric for previous time period.
  • Arrow to right indicates whether metric has increased or decreased.

To change which event is shown:

  1. For the respective data tile, click on the Pencil icon.
  2. In the Customize Tile modal, click within the Show drop-down.
  3. From the Show drop-down, select the event you want to populate the graph with.
  4. Click Save.

Each data tile can be customized to show one of the following events:

Available SHOW Events
  • Installs
  • Pageviews
  • Views
  • Clicks
  • Opens
  • Reinstalls
  • Web Session Starts
  • Web to App Redirects
  • SMS Sent
  • Impressions
  • Journey Dismissals

Data Graph

To change which event is shown:

  1. At the top of the Data Graph, click within the Show drop-down.
  2. From the Show drop-down, select the event you want to populate the graph with.
  3. Click on the Compare by drop-down and select the dimension on which you want the event split .
  4. Click Save.

The Data Graph can be customized to show one of the following events:

Available SHOW Events/Metrics
  • pageviews
  • SMS sent
  • views
  • installs
  • click to install %
  • clicks
  • opens
  • click to open %
  • reinstalls
  • click to reinstall %
  • web session starts
  • click to web session starts %
  • web to app redirects
  • impressions
  • journey dismissals
  • cost
  • eCPI
  • eCPC
  • ROAS
  • eCPM
  • ROI
  • eCPA
  • revenue
  • PURCHASE
  • ADD_TO_CART
  • ADD_TO_WISHLIST
  • VIEW_CART
  • INITIATE_PURCHASE
  • ADD_PAYMENT_INFO
  • SPEND_CREDITS
  • RESERVE
  • CLICK_AD
  • VIEW_AD
  • SEARCH
  • VIEW_ITEM
  • VIEW_ITEMS
  • RATE
  • SHARE
  • COMPLETE_REGISTRATION
  • COMPLETE_TUTORIAL
  • ACHIEVE_LEVEL
  • UNLOCK_ACHIEVEMENT
  • INVITE
  • LOGIN
  • SUBSCRIBE
  • START_TRIAL

Data Table

📘

"Unpopulated" Ad Partner vs. "Organic"

There are times when Branch does not receive the name of the Ad Partner who received attribution. In these cases, the word Unpopulated will show as the name in the Ad Partner column.

For conversions that are not attributed to any Ad Partner, the word Organic will show in the Ad Partner column.

To change which events and/or metrics are shown as columns:

  1. In the header of the table, in the far-right upper corner, click the three column button.
  2. Select the events and/or metrics of interest to you.
  3. To re-arrange the column order, click on the dotted tab to the right of the column name and drag to re-order.

The Data Table columns can be customized to show any of the following events:

Available COLUMN Events/Metrics
  • pageviews
  • SMS sent
  • views
  • installs
  • click to install %
  • clicks
  • opens
  • click to open %
  • reinstalls
  • click to reinstall %
  • web session starts
  • click to web session starts %
  • web to app redirects
  • impressions
  • journey dismissals
  • cost
  • eCPI
  • eCPC
  • ROAS
  • eCPM
  • ROI
  • eCPA
  • revenue
  • PURCHASE
  • ADD_TO_CART
  • ADD_TO_WISHLIST
  • VIEW_CART
  • INITIATE_PURCHASE
  • ADD_PAYMENT_INFO
  • SPEND_CREDITS
  • RESERVE
  • CLICK_AD
  • VIEW_AD
  • SEARCH
  • VIEW_ITEM
  • VIEW_ITEMS
  • RATE
  • SHARE
  • COMPLETE_REGISTRATION
  • COMPLETE_TUTORIAL
  • ACHIEVE_LEVEL
  • UNLOCK_ACHIEVEMENT
  • INVITE
  • LOGIN
  • SUBSCRIBE
  • START_TRIAL

To modify which dimension the columns are split by:

  1. . Click on the Compare by drop-down and select the dimension on which you want the event split.
  2. To remove a dimension, click theX next to the event in the Compare by field.

Filters & Compare Bys

The Data Tiles, Data Graph and Data Table can all be filtered using the following filters and compare bys:

Available Filters & Compare Bys
  • ad id
  • ad name
  • ad partner
  • ad partner (3p)
  • ad set id
  • ad set name
  • agency id
  • agency name
  • attributed
  • brand
  • campaign
  • campaign id
  • channel
  • country
  • creative name
  • custom events completed
  • customer ad name
  • customer ad set name
  • customer campaign
  • customer event alias
  • customer keyword
  • customer placement
  • customer secondary publisher
  • customer sub site name
  • device type
  • environment
  • feature
  • first event for user
  • geo country
  • geo dma code
  • has app
  • has clicked ad
  • has clicked email
  • journey id
  • journey name
  • keyword
  • last attributed touch type
  • link id
  • model
  • os
  • placement
  • platform
  • region
  • secondary publisher
  • stage
  • standard events completed
  • sub site name
  • tags
  • view id
  • view name
  • web format

Show/Hide Options

Both the Data Graph and the Data Table include two check boxes to show/hide both Organics and Unique.

Organic

When Organic is checked, unattributed data will show (attributed: false). This data is not attributed to any click or impression, and is the same as "organic" or "direct" data. By default, Organics are left hidden.

Unique

When Unique is checked, these are unique to a user. For example: if 1 user clicks 100 times, it will count as 1. There is no concept of "unique revenue"; "revenue" is always the sum of all purchase events. By default, Unique is shown.

Change Time Interval

Both the Data Graph and the Data Table include the ability to modify the time interval used when displaying the data.

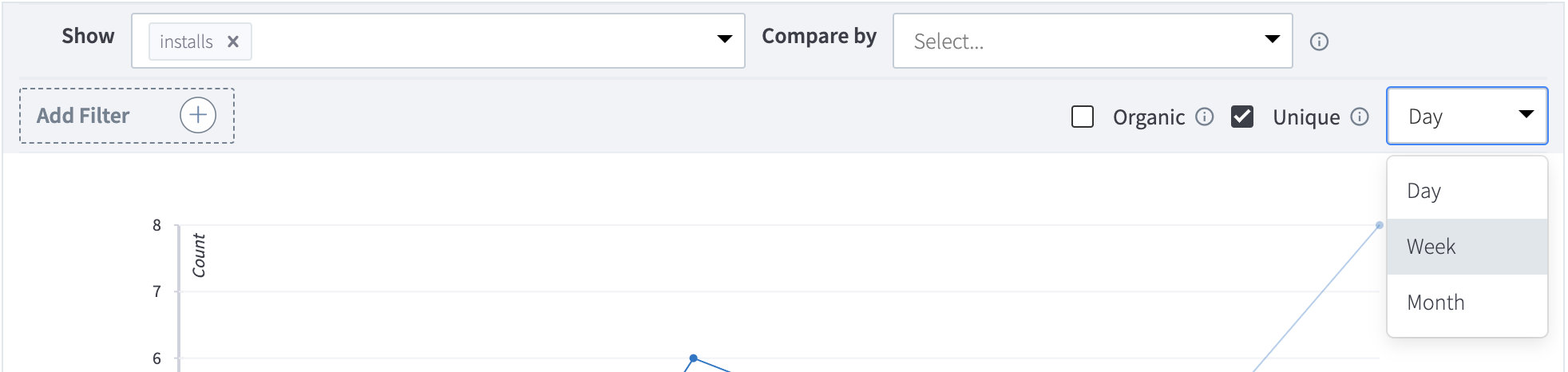

Data Graph

You can modify the Data Graph to visualize the data according to the following time intervals:

  • Day (default)
  • Week
  • Month

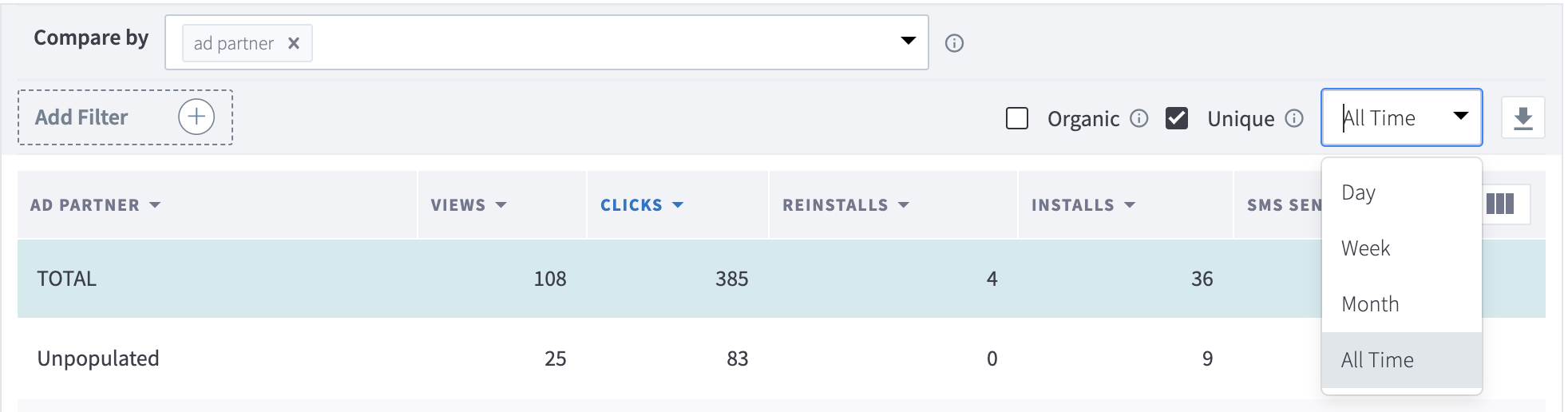

Data Table

You can modify the Data Table to visualize the data according to the following time intervals:

  • All Time (default)
  • Day
  • Week
  • Month

Share / Save / Reset Reports

Share Page State

You can easily share the Summary page in its current state - i.e including whatever changes you have made to default view - by clicking on the link button and copying the auto-generated Branch link.

Save Page View

You can also save the Summary page in its current state - i.e including whatever changes you have made to default view - by clicking on the flag button, naming the view, and clicking Save.

You can also access your previously saved views here as well.

Reset Page State

You can reset the Summary Page back to its default state at any time, by clicking on the reset button.
